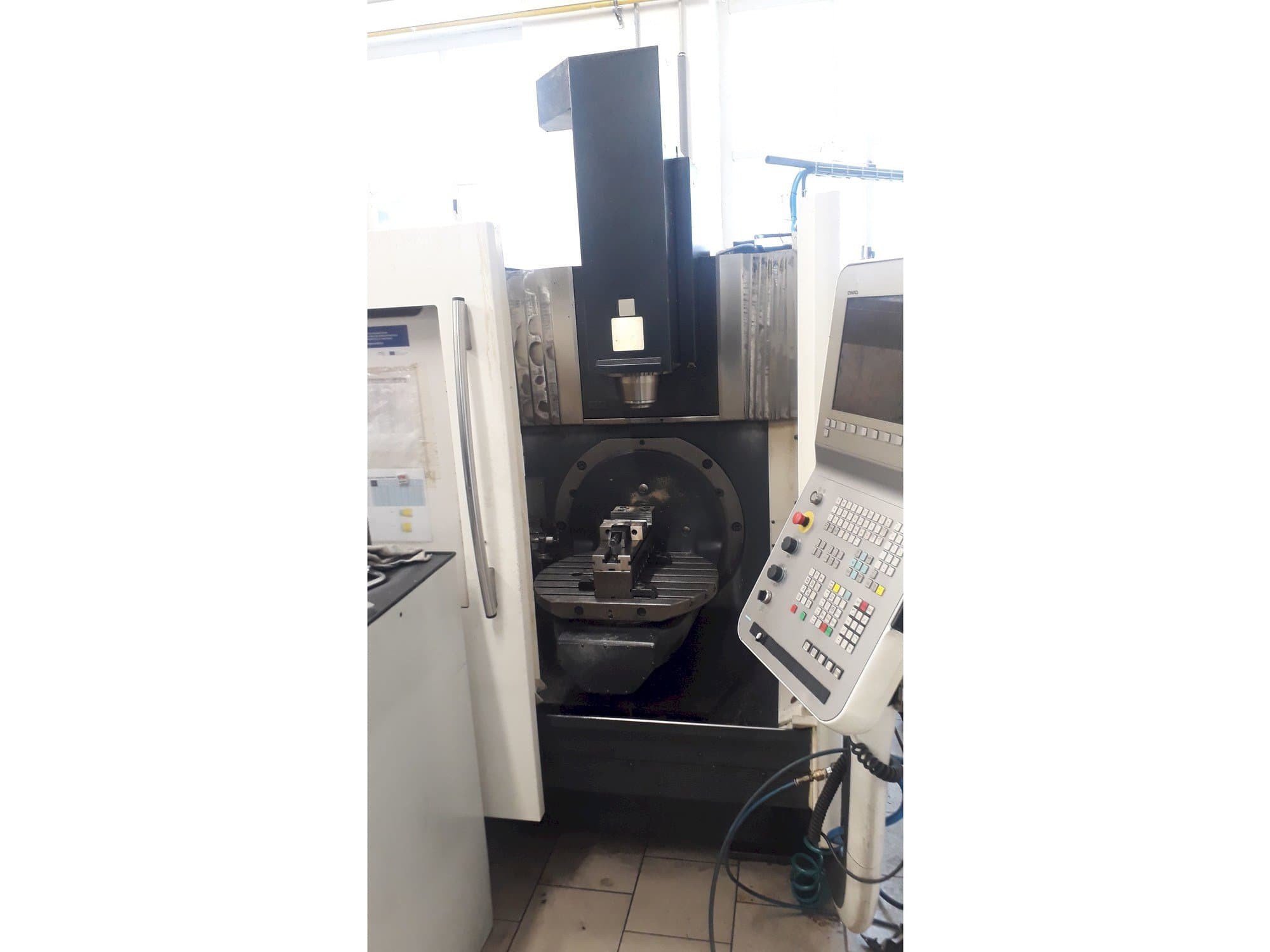

This DMG DMU 50 Eco vertical machine center was made in 2012 in Poland and has 32606 hours, of which 11997 are spindle hours. It is equipped with a Siemens 810D control unit and has 3+2 controlled axis. The machine has a spindle speed of 8000 rpm and is in very good condition. It comes with a chip conveyor.
Overview
- brand: DMG
- year: 2012
- MODEL: DMU 50 ECO
- production hours: 32606
- application type: Milling
- Location: Czech Republic
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Siemens
Technical Information - DMG DMU 50 ECO
General Data
- Measurements width: 4300 mm
- Measurements depth: 2200 mm
- Measurements height: 2615 mm
- Machine weight: 4000 kg
Control Unit
- Brand: Siemens
- Model: 810D
Main drive
- Number of spindles: 1
- Spindle speed range: 8000 1/MIN
- Spindle motor power: 13 kW
- Number of axis: 3+2
Movement
- X-AXIS Movement: 500 mm
- Y-AXIS Movement: 450 mm
- Z-AXIS Movement: 400 mm
- B-AXIS Movement: -5 / +110 DEGREES MM
- C-AXIS Movement: 360 DEGREES (0.001 DEGREE INCREMENT) MM
Table
- Outer length: 630 mm
- Outer width: 500 mm
- Table load: 200 kg
Tools
- Type of tool holder: SK 40
Media
- Power consumption: 17 kva
- Chip conveyor: Yes
Additional Equipment
- - Chip Conveyor
Additional Information
- Technical Machine Benefits:
- - Rapid feedrates: 12m/min
- - Tool setter
- - Table b-axis -5/+110 degrees
- - Table c-axis 360 degrees
- - Electronic handwheel
- - There is no cooling through spindle
- Qualitative Machine Benefits:
- - Very good condition
- - 2022 - new z-axis screw
- - 2018 - new spindle installed when the machine had ca 8000 hours
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
