Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
DEMAG - ERGOtech multi 110-470CH-INJ-DEM-2004-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used DEMAG ERGOtech multi 110-470 | Injection Moulding

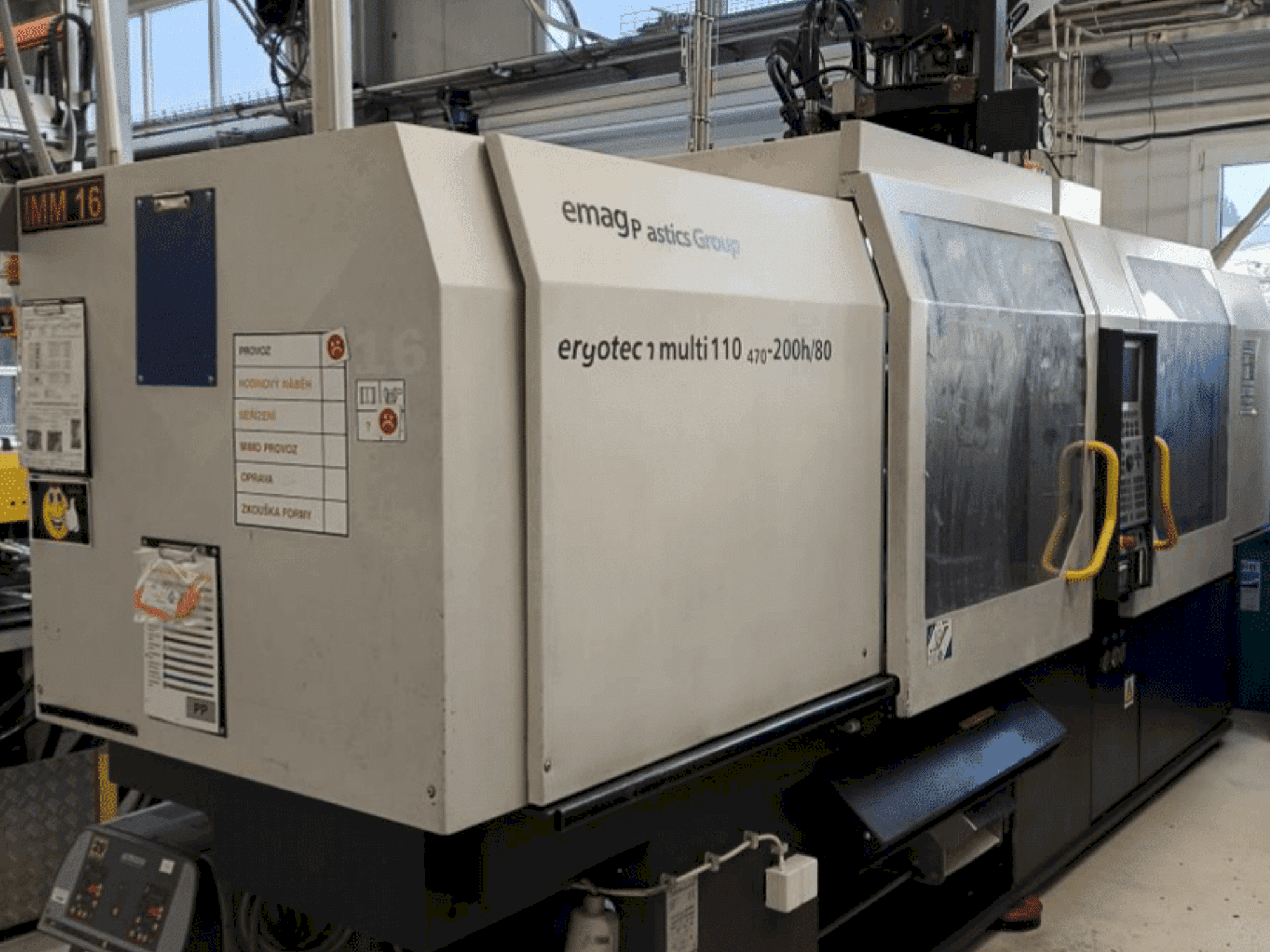

This DEMAG ERGOtech multi 110-470 hydraulic injection moulding machine was manufactured in 2004. It is a robust and reliable choice for your production needs. Consider the opportunity to buy this DEMAG ERGOtech multi 110-470 hydraulic injection moulding machine. Contact us for more information.
Overview
- brand: DEMAG
- year: 2004
- MODEL: ERGOtech multi 110-470
- application type: Injection Moulding
- Location: Switzerland
- machine type: Hydraulic Injection Moulding Machine
Technical Information - DEMAG ERGOtech multi 110-470
Technical Specification
- Clamping Force: 1100 kN
Additional Information
Machine Benefits
Technical Machine Benefits
- Standard: min. 250 mm, max. 850 mm
- Enlarged: min. 350 mm, max. 950 mm
- Mould weight on the moving mould mounting platen: 1000 kg
- Clear column spacing: 470x470 mm
Extra Information
Injection Unit Horizontal Injection Unit: Plasticising Cylinder A: Screw diameter: 25 mm L/D ratio: 20 Specific injection pressure: 2740 bar Stroke volume: 61.3 mm Injection moulding quantity (PS): 54 g Max. dosage stroke: 125 mm Plasticising Cylinder B: Screw diameter: 30 mm L/D ratio: 20 Specific injection pressure: 1900 bar Stroke volume: 106.0 mm Injection quantity (PS): 94 g Max. dosing stroke: 150 mm Plasticising Cylinder C: Screw diameter: 35 mm L/D ratio: 20 Specific injection pressure: 1400 bar Stroke volume: 144.2 mm Injection moulding quantity (PS): 128 g Max. dosing stroke: 150 mm Vertical Injection Unit: Plasticising Cylinder A: Screw diameter: 18 mm L/D ratio: 20 Specific injection pressure: 2400 bar Stroke volume: 22.8 mm Injection moulding quantity (PS): 20 g Max. dosing stroke: 90 mm Plasticising Cylinder B: Screw diameter: 22 mm L/D ratio: 20 Specific injection pressure: 2060 bar Stroke volume: 41.8 mm Injection moulding quantity (PS): 37 g Max. metering stroke: 110 mm Previous material use: POM / PA6 / PP / TPE
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
