➤ Used DECKEL MAHO DMU 80T - Vertical centre For sale

Show in original language

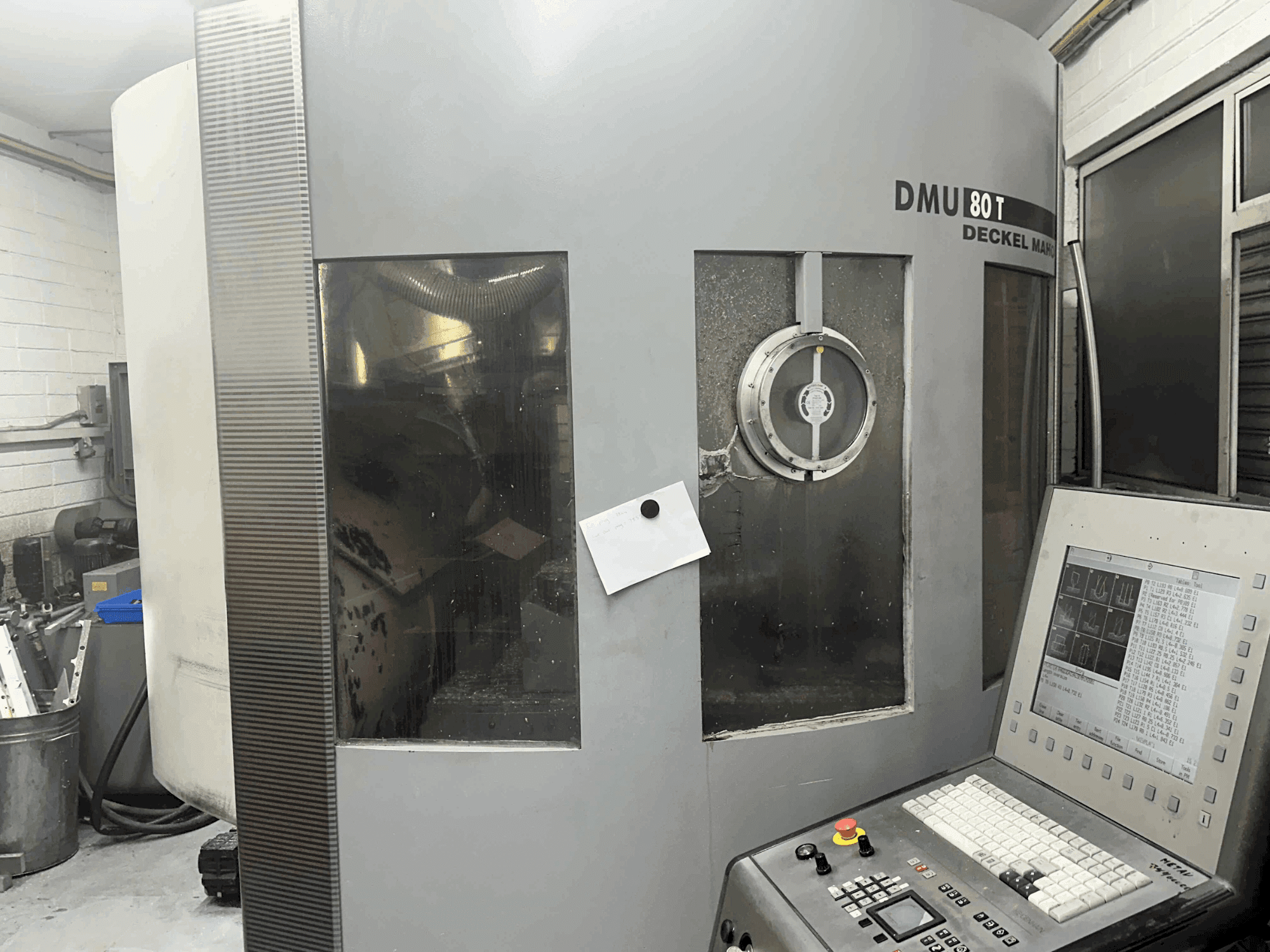

This DECKEL MAHO DMU 80T, manufactured in 2002, is a versatile 5-axis vertical machining center with a Heidenhain Millplus control unit for precise machining. It has 880 mm X-axis travel, 630 mm on the Y and Z axes, 103 degrees B-axis rotation, and 360 degrees in the C-axis. The spindle reaches 18,000 rpm, supporting workpieces up to 850 x 680 x 600 mm and 800 kg. It has 32 tool slots, BT40 tool holders, and internal cooling. Contact us for details about this vertical machining centre.

Overview

brand: DECKEL MAHO
year: 2002
MODEL: DMU 80T
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 80T

General Data

Measurements width: 2600 mm
Measurements depth: 4530 mm
Measurements height: 2500 mm
Machine weight: 9600 kg

Control Unit

Model: Millplus
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN
Tool taper: BT40
Number of axis: 5

Movement

X-AXIS Movement: 880 mm
Y-AXIS Movement: 630 mm
Z-AXIS Movement: 630 mm
B-AXIS Movement: 103º MM
C-AXIS Movement: 360º MM

Workpiece

Workpiece weight: 800 kg

Tools

Slots in storage: 32
Max weight: 8 kg
Max tool diameter: 130 mm
Max tool length: 315 mm

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- 5 Axis capability, can also be used as 4 Axis with rotary table removed

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High spindle speed of 18,000 rpm allows for precision and high-speed machining.
- - 5-axis capability provides versatility in machining complex geometries, enhancing operational flexibility.
- - Workpiece max dimensions: 850 x 680 x 600 mm
- - Max diameter: 650 mm
Qualitative Machine Benefits:
- - Heidenhain millplus control unit ensures precise and efficient control during complex machining operations.
- - Robust construction with a machine weight of 9600 kg ensures stability and vibration resistance during machining.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
