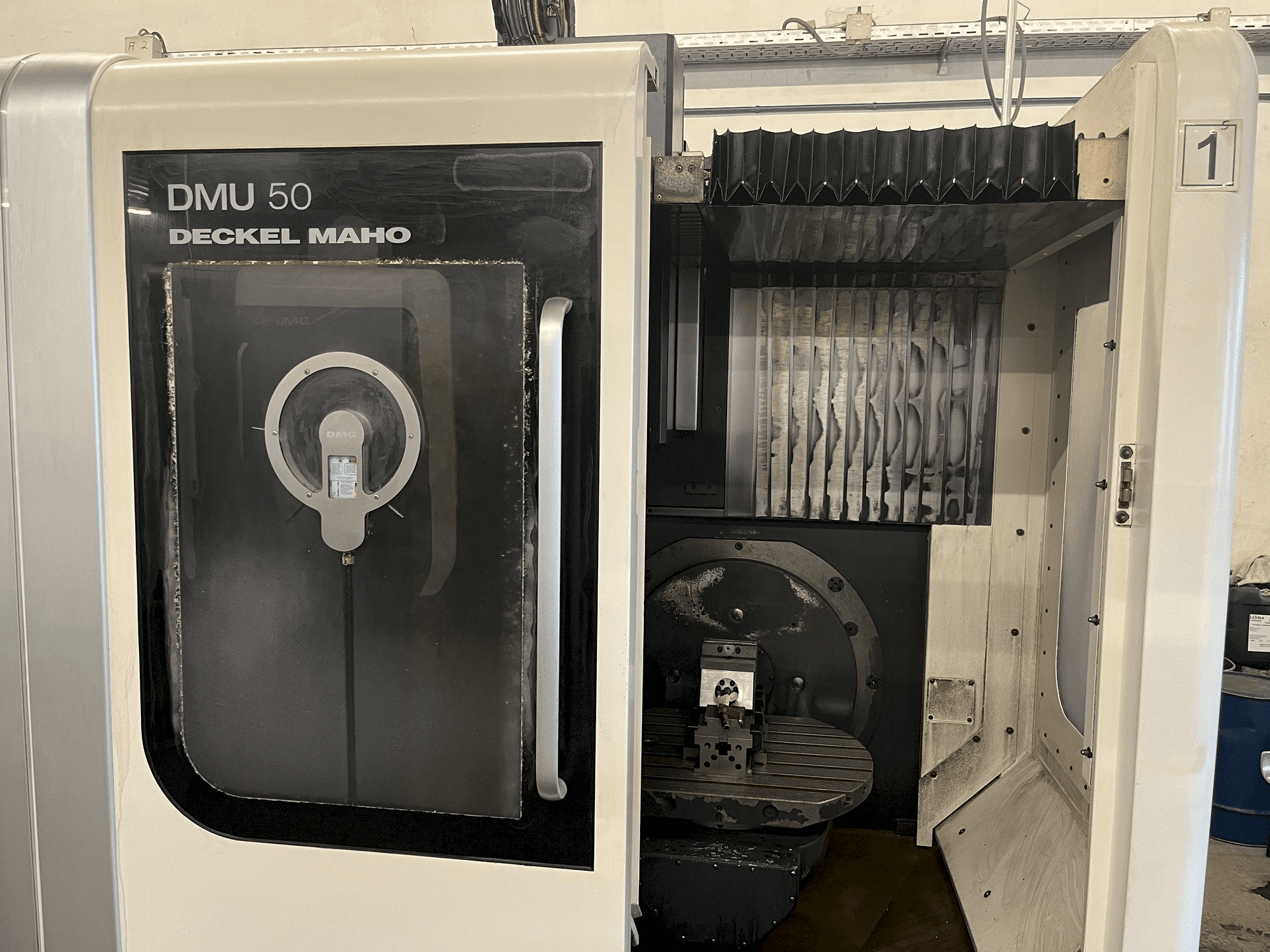

DECKEL MAHO DMU 50 Vertical Machine Center

Show in original language

This DECKEL MAHO DMU 50 Vertical Machine Center was made in the year 2011 and has 10914 hours. It is equipped with a 3D Heidenhain iTNC 530 control unit and has 3+2 axis. The machine has a spindle speed of 20 - 10000 rpm.

Overview

brand: DECKEL MAHO
year: 2011
MODEL: DMU 50
production hours: 10914
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 50

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20 - 10000 1/MIN
Spindle motor power: 13/9 kW (40/100 \ EO)
Tool taper: SK 40 according to DIN 69871
Number of axis: 3+2

Movement

X-AXIS Movement: 500 mm
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 450 mm
Y-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 400 mm
Z-AXIS Rapid traverse: 24 m/min

Table

Table load: 200 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool clamping according to din 69872, semi-cabin
- - Swivel rotary table with digital drives
- - Only positioning operation possible
- - Nc dividing head not possible
- - Inclusive automatic hydraulic clamping, electronic angle
- - Angle display and plane transformation
- - Tool magazine 30 places sk40
- - Vertical chain with double gripper
- - Including set-up aid for tool loading
- - Infrared measuring probe
Qualitative Machine Benefits:
- - Internal cooling lubricant supply (ikz)
- - Paper belt filter 20bar/40l/min/tank 6001 incl. Cabin
- - Roof, rotary feed-through in spindle, rotating
- - Electronic handwheel
- - Screen text german/english
- - Inspection window

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
