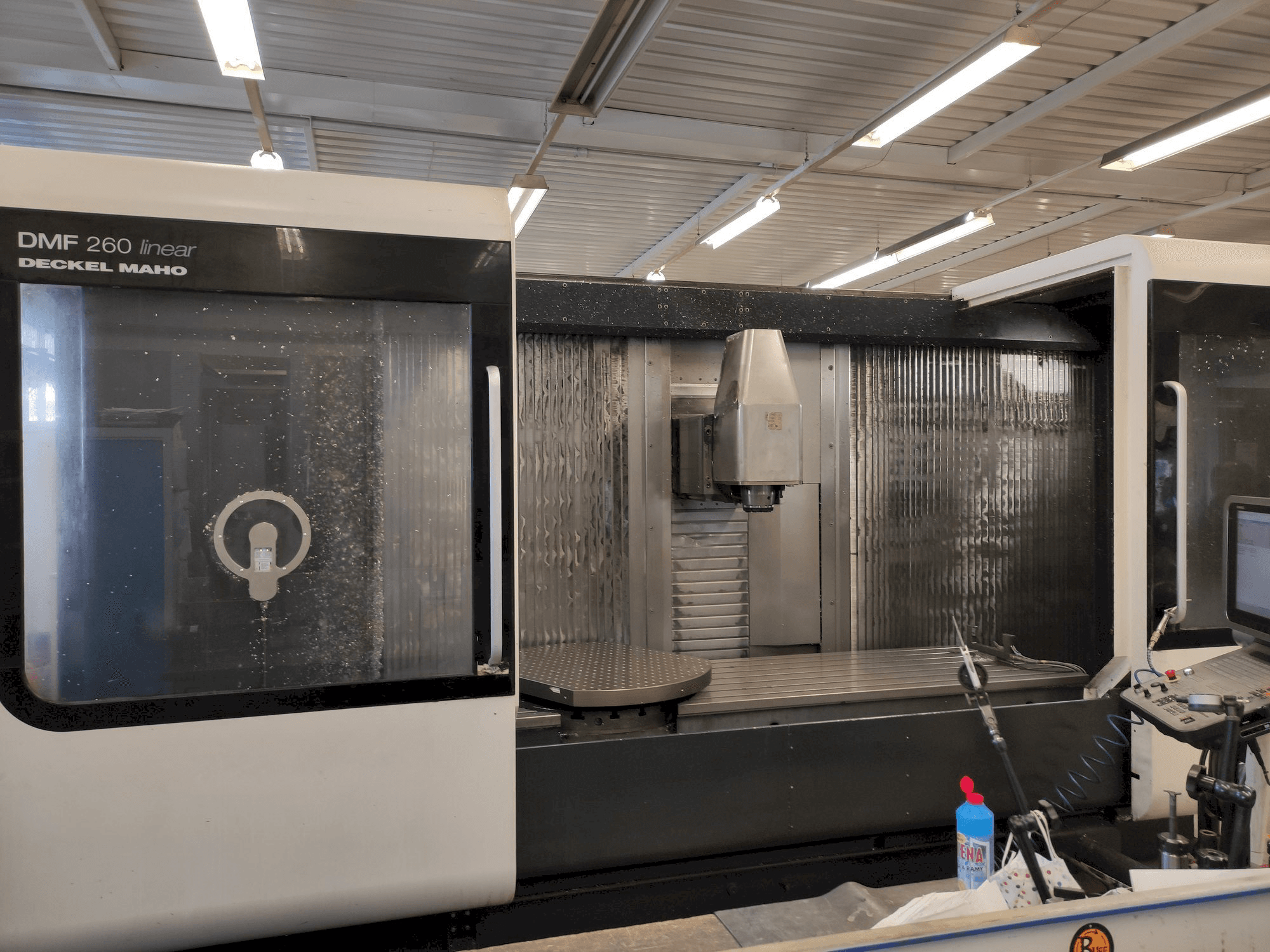

DMG Deckel Maho DMF 260 linear Vertical Machining Center

Show in original language

This Deckel Maho DMF 260 linear Vertical Machining Center was built in the year 2011 in Germany. It has been working for 45228 hours, of which 17156 are spindle hours. This 5 axis machine is equipped with a HEIDENHAIN iTNC 530 control unit. This machine can work with a spindle speed up to 18000 rpm. It has mainly produced molds. A new spindle was installed in 2015, has been regularly maintained, and is in very good condition.

Overview

brand: DECKEL MAHO
year: 2011
MODEL: DMF 260 linear
production hours: 45228
application type: Milling
Location: Czech Republic
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMF 260 linear

General Data

Measurements width: 7709 mm
Measurements depth: 3443 mm
Measurements height: 2692 mm
Machine weight: 15070 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN
Spindle motor power: 35/25 kW (40% ED/100%)
Number of axis: 5

Movement

X-AXIS Movement: 2600 mm
X-AXIS Working Feed: 20.000 mm/min
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 700 mm
Y-AXIS Working Feed: 20.000 mm/min
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 700 mm
Z-AXIS Working Feed: 20.000 mm/min
Z-AXIS Rapid traverse: 40 m/min

Workpiece

Workpiece weight: 2150 kg

Table

Outer length: 2920 mm
Outer width: 740 mm
TSlots size: 6
Distance between: 100 mm

Tools

Slots in storage: 30
Type of tool holder: HSK-A63

Additional Equipment

- Heidenhain workpiece probe TS 649
- Blum tool laser measuring

Additional Information

Machine history

End product: Mould
Industries: Die & mould

Machine Benefits

Technical Machine Benefits:
- - Torque 130/87 nm (40/100 %)
- - Integrated rotary table c axis 360° / 0. 001°, max. 50 rpm "
- - Rotary table diameter 750 mm, max. Load 500 kg
- - Head b axis swivelling range - /+ 110°
- - Coolant unit + paper band filter
- - Cooling trough spindle 40 bar
Qualitative Machine Benefits:
- - Very good condition
- - Regularly maintained
- - 2015 - new spindle

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
