DMG Deckel Maho DMC 125 U Machining Center

Show in original language

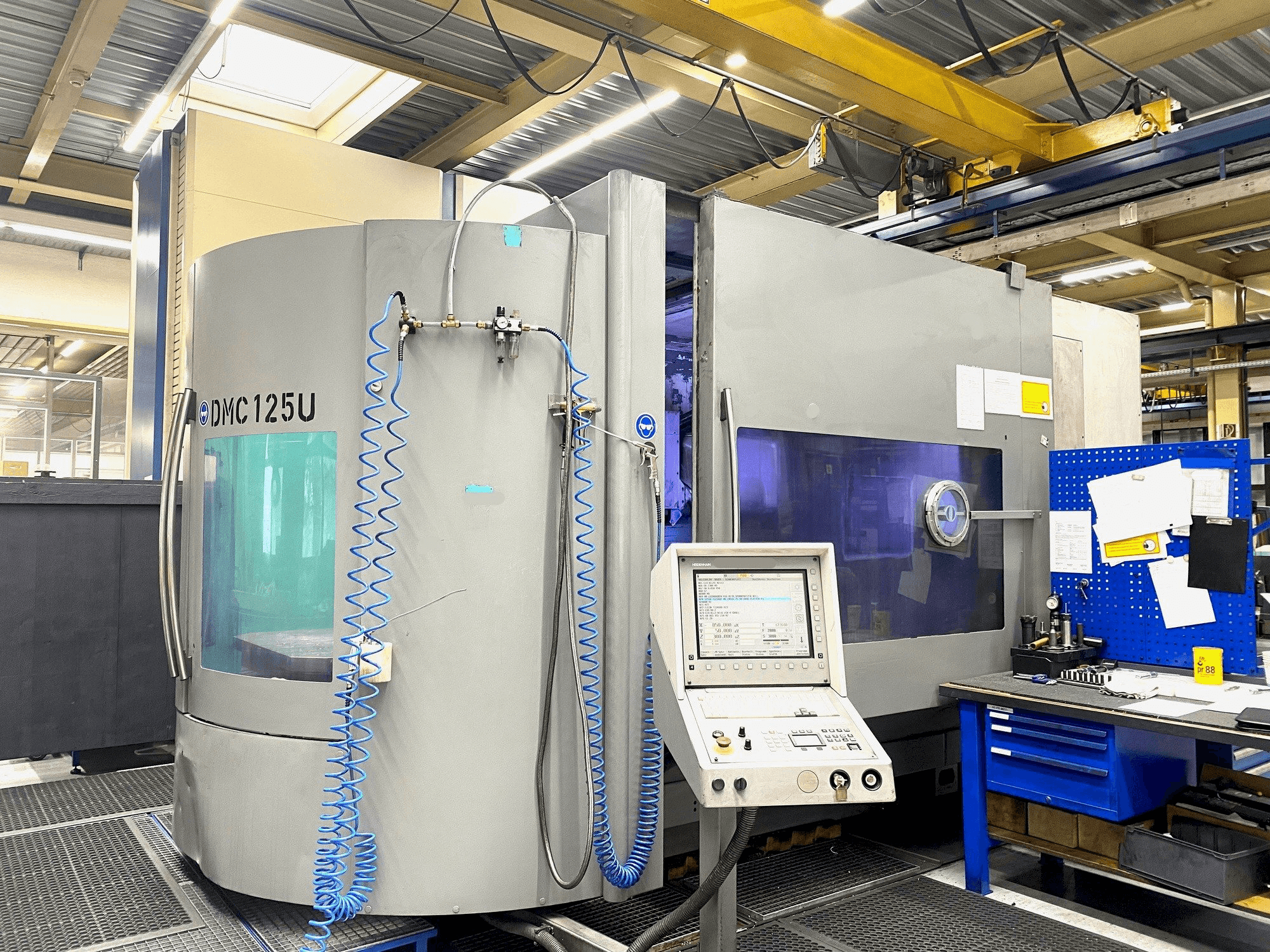

This DMG Deckel Maho DMC 125 U Machining Center was built in the year 2000. It counts with 42901 working hours. This 5 axis machine is equipped with a Millplus control unit. This machine can work with a spindle speed range 20 - 12000 rpm. It comes with 2 pallets of 1.000mm x 800mm.

Overview

brand: DECKEL MAHO
year: 2000
MODEL: DMC 125 U
production hours: 42901
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold

Technical Information - DECKEL MAHO DMC 125 U

General Data

Measurements width: 5500 mm
Measurements depth: 3000 mm
Measurements height: 3100 mm
Machine weight: 14300 KG

Main drive

Number of spindles: 1
Spindle speed range: 20 - 12000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 880 mm
Z-AXIS Movement: 800 mm

Table

Outer length: 800 mm
Outer width: 630 mm

Tools

Type of tool holder: SK 50 according to DIN 69871

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X-y-z- axis feed speed: 40m/min
- - Universal milling head with controlled b-axis sk50
- - Nc rotary table with pallet
- - Tool changer with pallet: 60 tool positions
- - Coolant pressure ikz 40bar
- - Main drive: sk50 integrated motor spindle
- - Tool changing device horizontal double gripper, 60 magazine positions
- - Automatic swivel milling head
- - Nc rotary table with pallet carrier
- - Turntable changer
Qualitative Machine Benefits:
- - 2 pallets: 1. 000mm x 800mm
- - Coolant tank 900 l, coolant pressure ikz form through spindle center (ad)
- - Rotating inspection window
- - Accessories: chip conveyor - coolant/band filter system
- - Weight of tool magazine: 1. 400kg
- - Transport dimension tool magazine lxwxh: 2,65 x 2,0 x 2,5m

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
