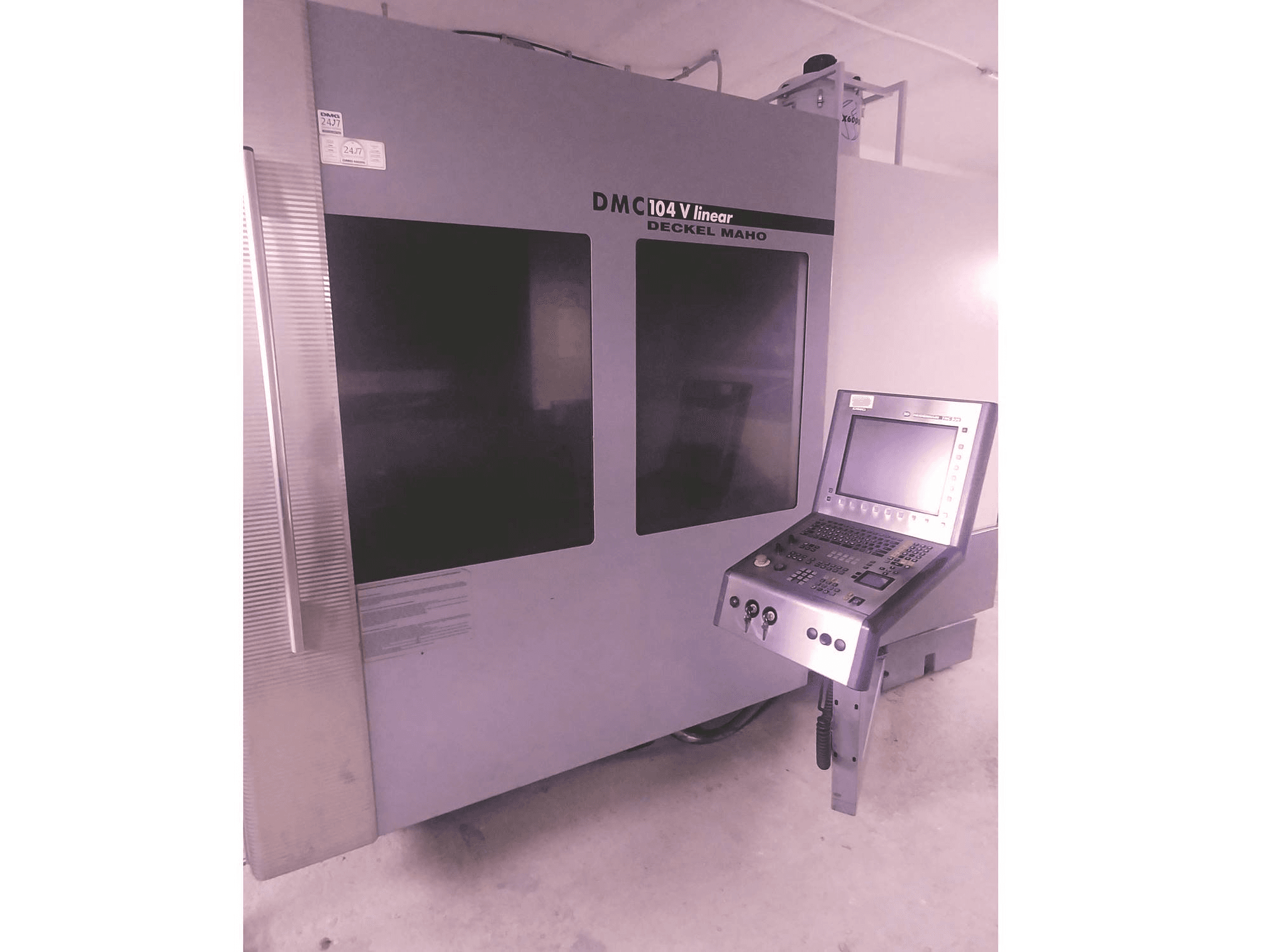

This Deckel-Maho DMC 104 V Linear Vertical Machining center was made in 2008 in Germany and has 80176 production hours, of which 35347 are spindle hours. It is equipped with a Heidenhain iTNC530 control unit and has 3 axis. The machine has a spindle speed of 18000 rpm, is in very good condition, and is well maintained.
Overview
- brand: DECKEL MAHO
- year: 2008
- MODEL: DMC 104 V Linear
- production hours: 80176
- application type: Milling
- Location: Slovakia
- machine type: Universal Machining Centre
- availability: Sold
- control unit brand: Heidenhain
Technical Information - DECKEL MAHO DMC 104 V Linear
General Data
- Measurements width: 4060 mm
- Measurements depth: 2450 mm
- Measurements height: 2800 mm
- Machine weight: 8900 kg
Control Unit
- Brand: Heidenhain
- Model: iTNC530
Main drive
- Number of spindles: 1
- Spindle speed range: 18000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 1040 mm
- Y-AXIS Movement: 600 mm
- Z-AXIS Movement: 500 mm
Workpiece
- Workpiece weight: 800 kg
Table
- Outer length: 1250 mm
- Outer width: 600 mm
Tools
- Slots in storage: 30
- Type of tool holder: ISO 40
Media
- Power consumption: 39 kVa
Additional Information
- Technical Machine Benefits:
- - Heidenhain ts 640 infra probe
- - Spindle thermal compensation
- - Exhaust collector
- - Electrics air conditioning
- - null
- - null
- Qualitative Machine Benefits:
- - Very good condition!
- - Measuring 4/2022: x/y repeat positioning 0,02/0,01 mm
- - Spindle motor power 22/16 kw (40/100% ed)
- - Spindle backlash 150mm 0,01mm
- - 11/2017 - kessler spindle refurbished
- - 11/2020 - z axis drive refurbished
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
