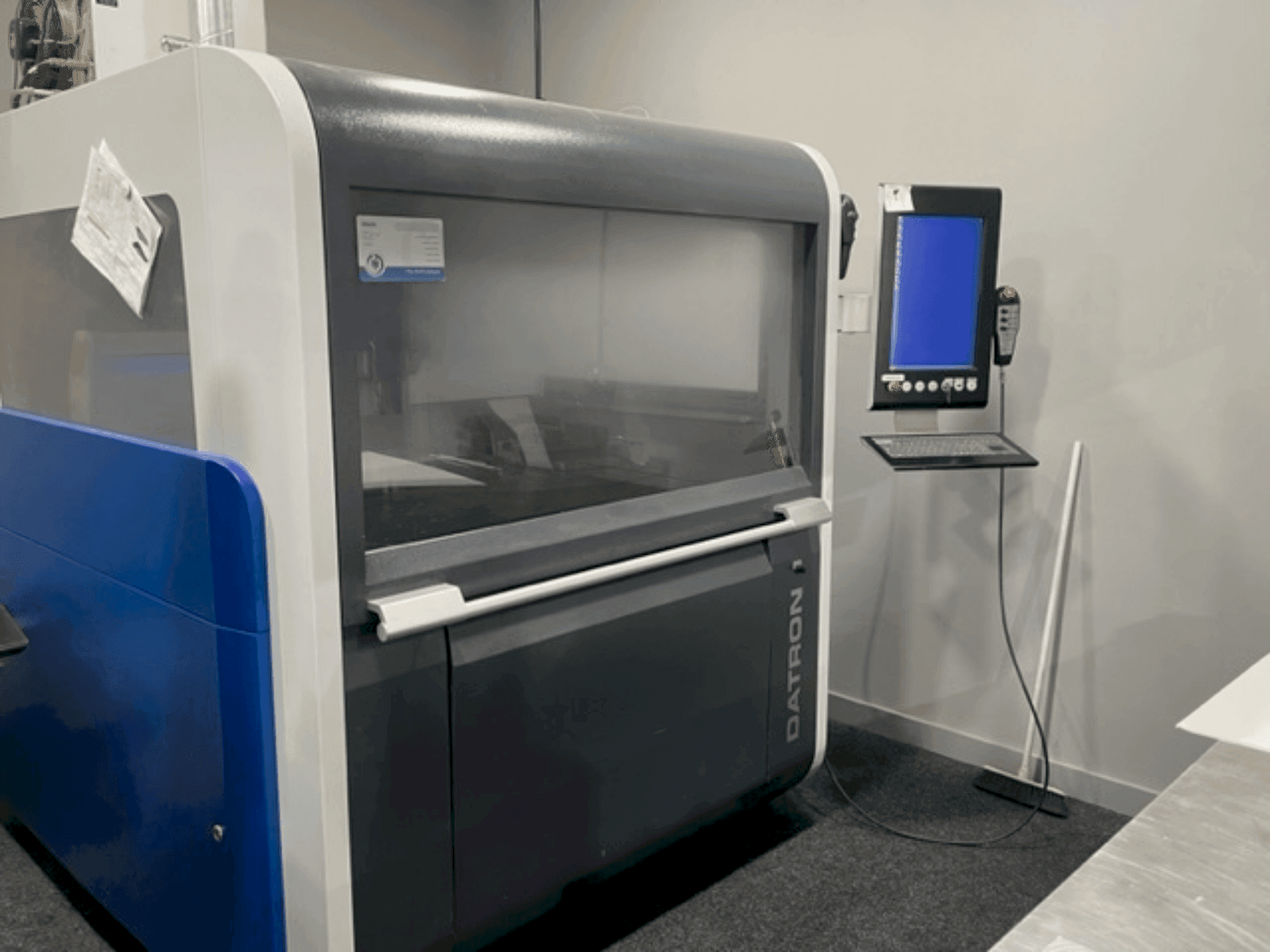

DATRON M8 Cube (2014) Milling machine

Show in original language

This DATRON M8 Cube Milling machine was manufactured in 2014 in Germany. The machine has a Datron CNC intuitive programming system Windows driven with a flat panel monitor. It is equipped with a max. spindle speed of 60,000 rpm and a drive system of digital servo ball screw which is on all axes with feed rates up to 22 m/min. Includes a tool Changer that has 5 fold HSK-E 25 (opt 10). See product brochure (EN) as PDF attached for more details.

Overview

brand: Datron
year: 2014
MODEL: M8 Cube
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Datron M8 Cube

General Data

Measurements width: 1740 mm
Measurements depth: 1740 mm
Measurements height: 1950 mm
Machine weight: 1300 kg

Main drive

Spindle speed range: max. 60000 1/MIN
Stroke: 245 mm

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 830 mm
Z-AXIS Movement: 245 mm

Additional Equipment

- Z stroke: 245 mm, 200 mm under bridge
- (excluding control panel) Drive system: digital servo ball screw drives on all axis with feed rates up to 22 m/min
- Tool Changer: 5 fold HSK-E 25 (opt 10) with integrated tool changer
- Programming system: Datron CNC intuitive Windows driven
- Industrial PC based control system
- Flat panel monitor
- Hand held control pendent

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
