DANOBAT Cupra 30 Turret Punching Machine

Show in original language

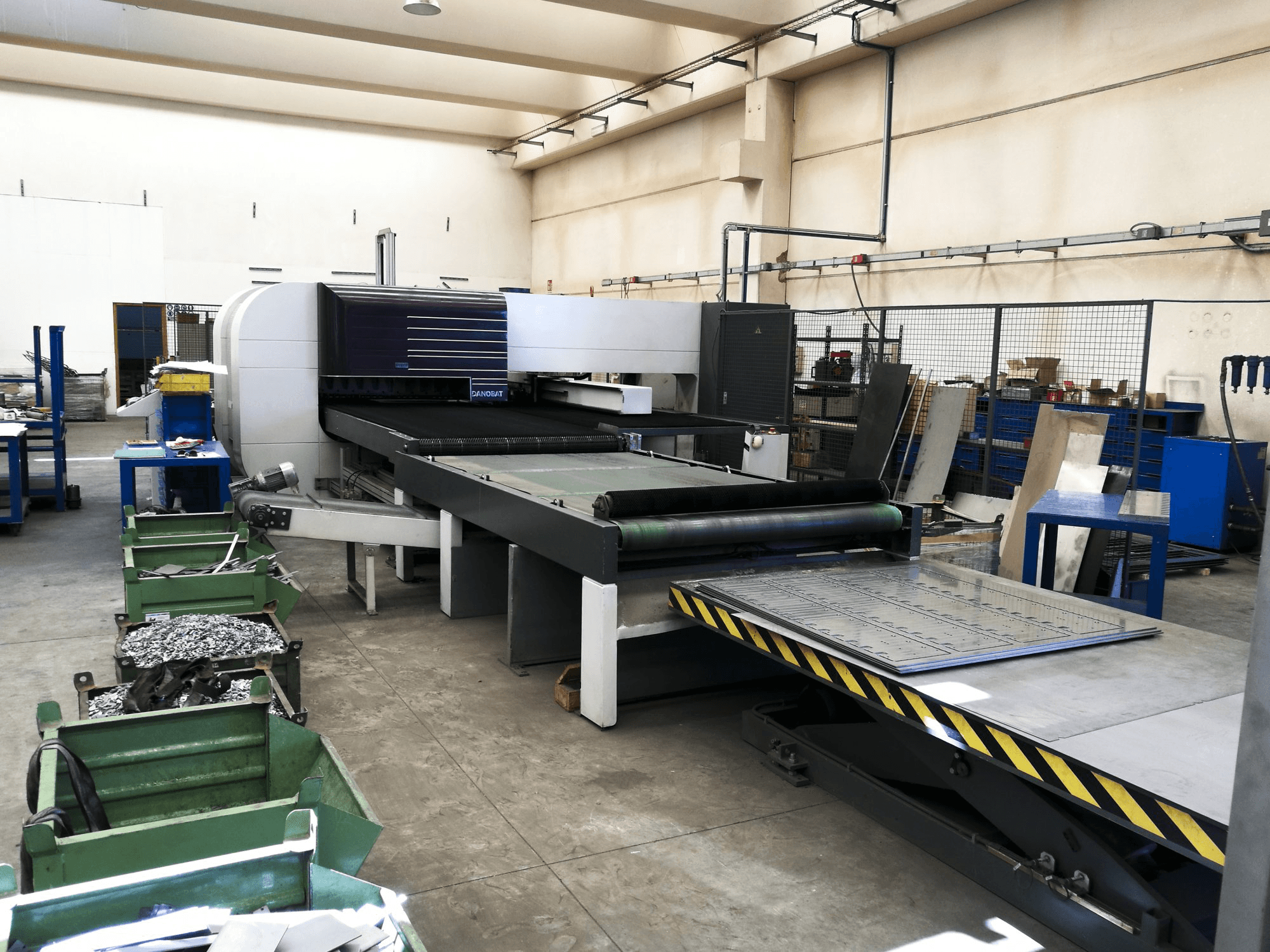

This DANOBAT Cupra 30 Turret Punching Machine was built in 2010 and has a production record of 16770 working hours. This 300 kN strong machine is operated through a DANOBAT PZ1631 Control unit with Ethernet interface and is equipped with an integrated shear, scrap separator and two sheet metal loading pallets, making its working routine fully automated. In the past, it has worked most of the time on steel and can process up to 6 mm thick sheets.

Overview

brand: DANOBAT
year: 2010
MODEL: Cupra 30
production hours: 16770
application type: Punching
Location: Italy
machine type: CNC Punch Press
availability: Sold

Technical Information - DANOBAT Cupra 30

General Data

Measurements width: 18443 mm
Measurements depth: 6073 mm
Machine weight: 18000 kg

Control Unit

Model: PZ1631
Interface: Ethernet

Main drive

Punching force: 300 kN
Maximum sheet thickness: 6 mm

Movement

X-AXIS Movement: 3000 mm
X-AXIS Rapid traverse: 100 m/min
Y-AXIS Movement: 1500 mm
Y-AXIS Rapid traverse: 80 m/min

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm

Tools

Number of index: 4
Number of stations: 43
Max tool diameter: 88.9 mm

Media

Main electronic connection: 400 V / 3 P / 50 Hz
Power consumption: 17 kVA
Air pressure: 6 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
