DAH LIH PT128 Universal machining center

Show in original language

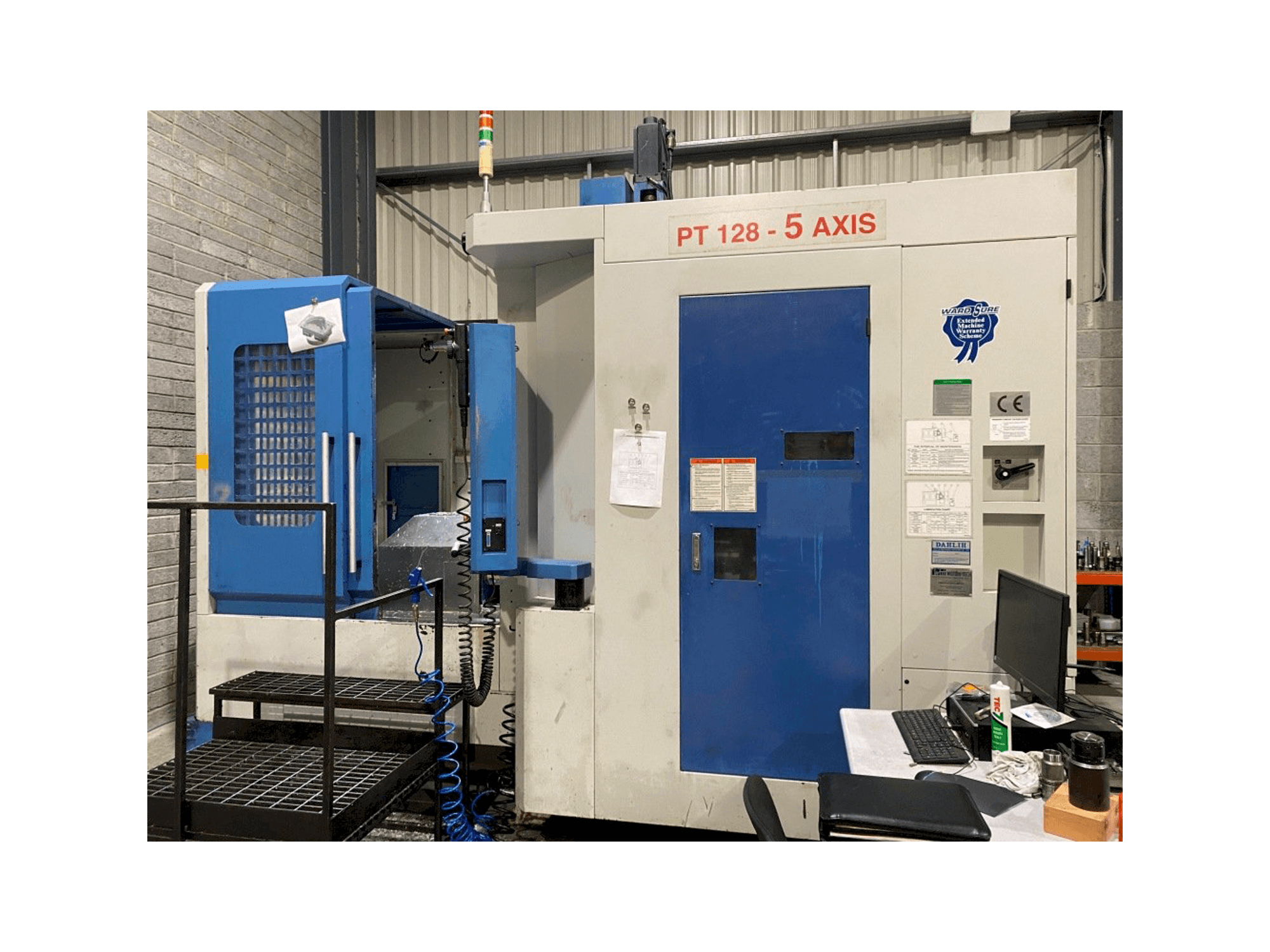

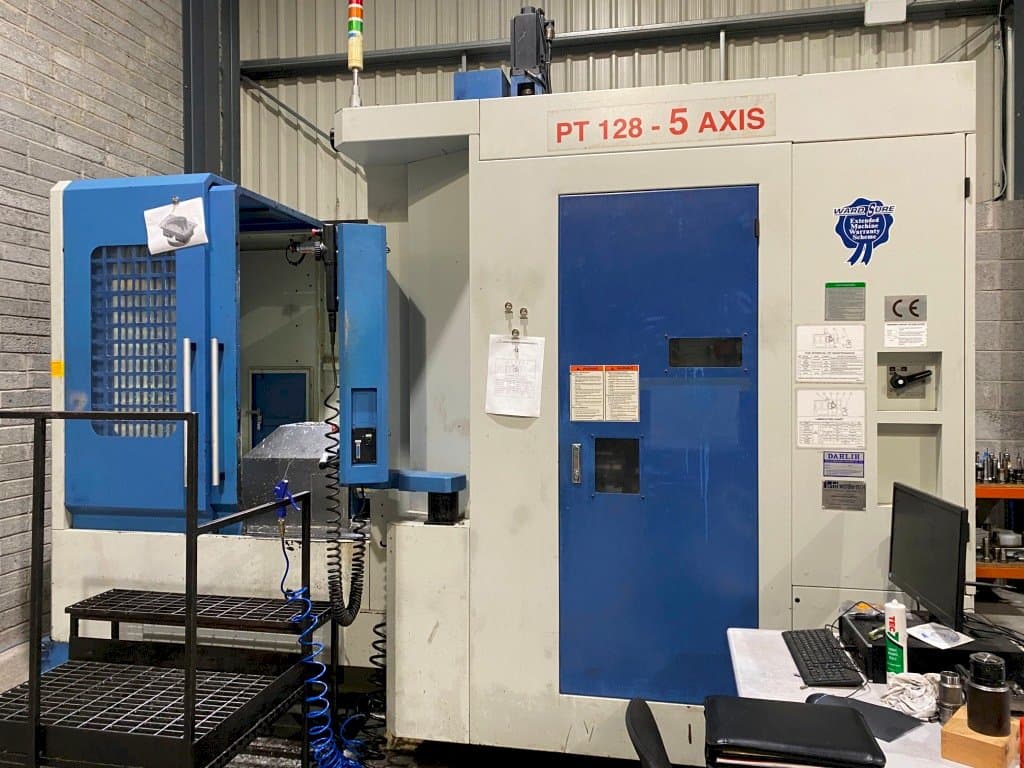

This DAH LIH PT128 Universal machining center was built in Taiwan in 2007. It is operated through a Heidenhain TNC 530 control unit. This 5 axis machine has a spindle speed up to 20000 rpm. Includes a selection of tool holders, MPG and a spindle chiller. It is in very good condition.

Overview

brand: DAH LIH
year: 2007
MODEL: PT128
application type: Milling
Location: Ireland
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DAH LIH PT128

General Data

Measurements width: 3830 mm
Measurements depth: 2935 mm
Measurements height: 3500 mm
Machine weight: 13500 KG

Control Unit

Model: TNC 530
CNC main language: English
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 20000 1/MIN
Tool taper: HSK 63A
Number of axis: 5

Movement

X-AXIS Movement: 1200 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 510 mm
A-AXIS Movement: +110 to -110 Deg MM
C-AXIS Movement: 360 Deg MM

Workpiece

Workpiece x: 1200 mm
Workpiece y: 800 mm
Workpiece z: 510 mm
Workpiece weight: 1600 KG

Table

Outer length: 1350 mm
Outer width: 800 mm
Number of tslots: 5
Distance between: 125 mm

Tools

Slots in storage: 40
Max weight: 7 KG
Max tool diameter: 135 mm
Max tool length: 300 mm
Type of tool holder: HSK63A

Media

Main electronic connection: 400V
Power consumption: 55 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Selection of Tool Holders
- MPG
- Spindle Chiller

Additional Information

Machine history

Material type: Mild steel
End product: Pump parts
Industries: Pump industry

Machine Benefits

Technical Machine Benefits:
- - Simultaneous axis operation
- - 40 place atc
- - X,y,z coolant through ballscrews
- - X,y,z linear guide ways
- - X,y,z linear scales
Qualitative Machine Benefits:
- - Machine in very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
