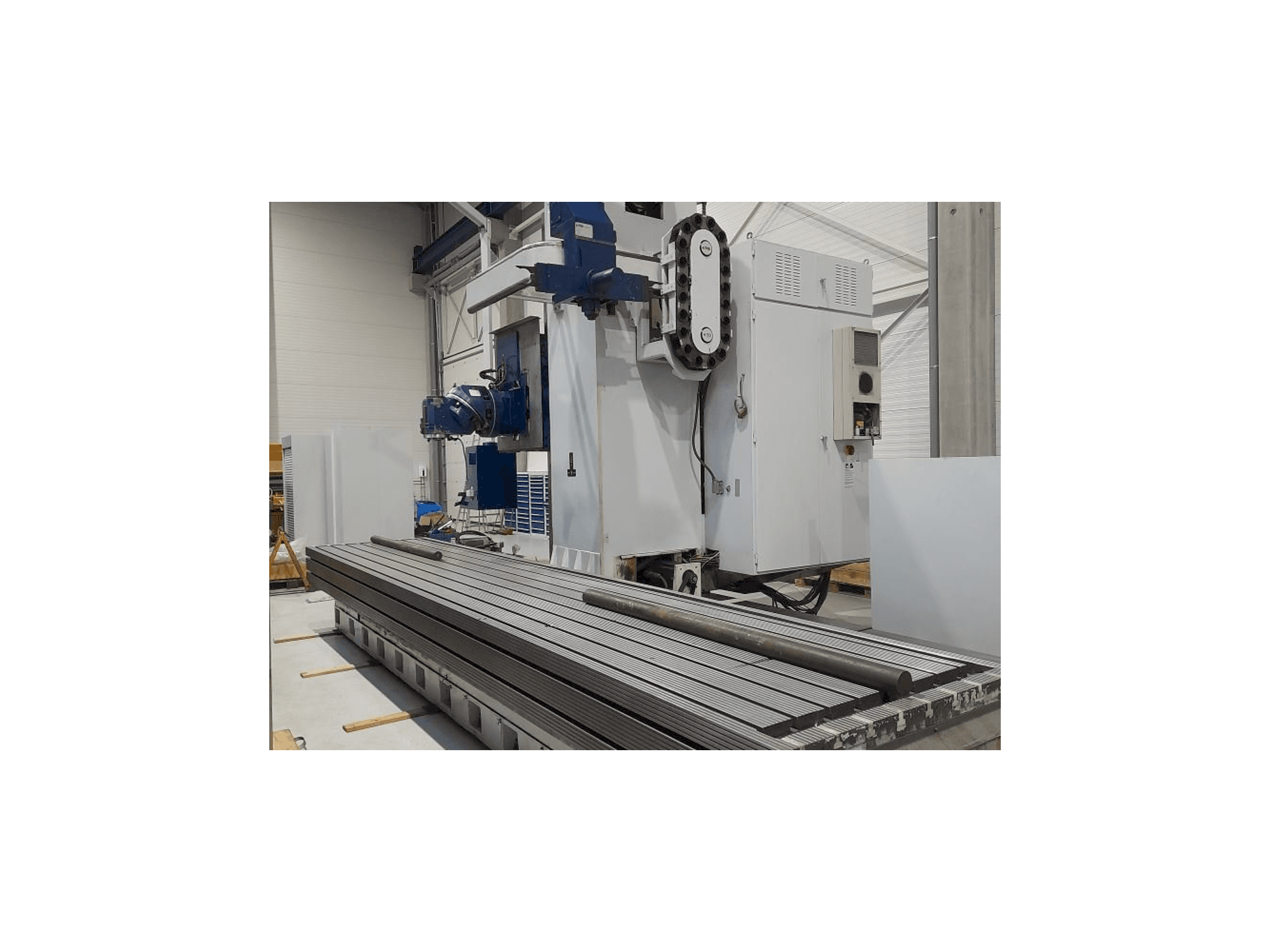

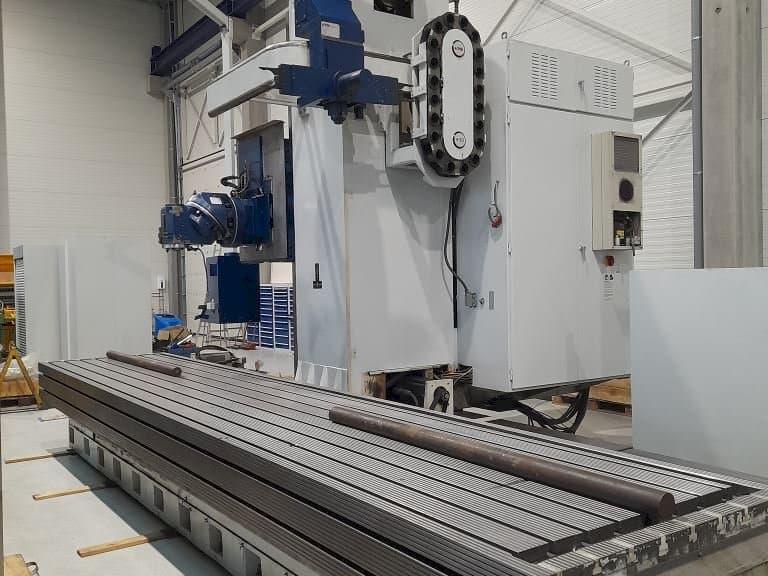

CME FCM 6000 Milling Machine

Show in original language

This CME FCM 6000 Milling Machine was manufactured in the year 2000. It is equipped with a HEIDENHAIN TNC 426 CB control unit. This 4 axis machine works with a spindle speed 3000 rpm. It presents very good working conditions, as it was well maintained and serviced.

Overview

brand: CME
year: 2000
MODEL: FCM 6000
application type: Milling
Location: Belgium
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - CME FCM 6000

General Data

Measurements width: 12100 mm
Measurements depth: 4700 mm
Measurements height: 4600 mm
Machine weight: 40000 kg

Control Unit

Model: TNC 426 CB
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 0 - 3000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 6000 mm
Y-AXIS Rapid traverse: 1200 mm
Z-AXIS Movement: 2000 mm

Table

Outer length: 6500 mm
Outer width: 1200 mm

Tools

Slots in storage: 20
Type of tool holder: ISO 50

Media

Main electronic connection: 400 V/50
Power consumption: 30 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cnc contouring control include color screen
- - T-slots 22 h8/140
- - Distance table-spindle (horizontal): 275 - 2275 mm
- - Distance table-spindle (vertical): 25-2025 mm
- - Feed range (linear axes): 10000 mm/min
- - Feed force (linear axes): 25000 n
Qualitative Machine Benefits:
- - This machine is in a very good, well maintained and serviced condition.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
