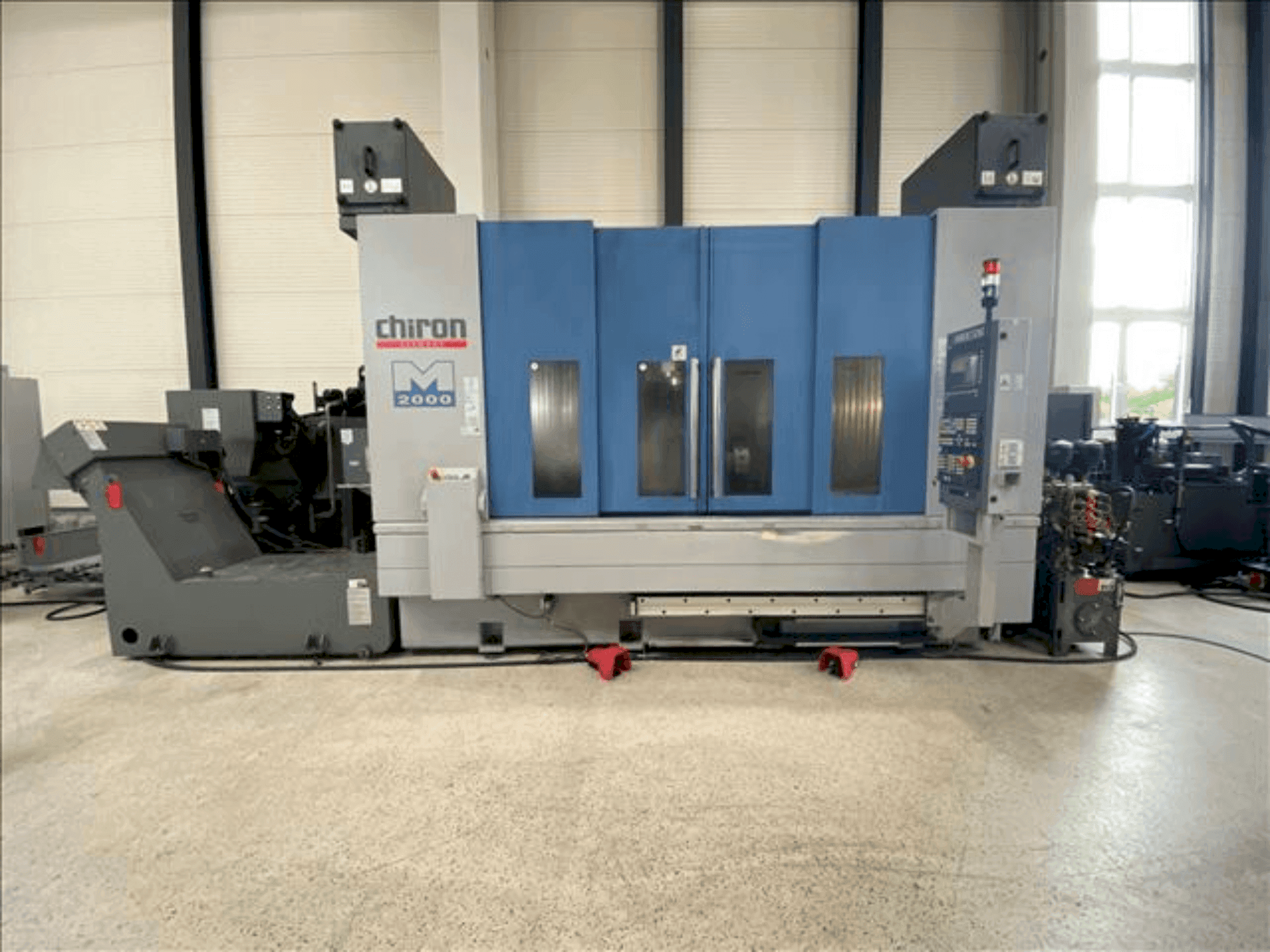

This 4-axis CHIRON Mill 2000 vertical machining centre was manufactured in 2005. Equipped with a Siemens 840D Powerline control, it features a spindle speed of 12,000 rpm and a rapid motion of 40 m/min. The machine includes a chip conveyor, internal cooling unit, and a tool changer with 98 positions. Ideal for complex machining tasks, the CHIRON Mill 2000 machine we have for sale is a robust addition to any workshop. Contact us for more information.
Overview
- brand: CHIRON
- year: 2005
- MODEL: Mill 2000
- application type: Milling
- Location: Denmark
- machine type: Machining centers (vertical)
- availability: Immediately
- control unit brand: Siemens
Technical Information - CHIRON Mill 2000
General Data
- Measurements width: 4000 mm
- Measurements depth: 7000 mm
- Measurements height: 3100 mm
- Machine weight: 12000 kg
Control Unit
- Brand: Siemens
- Model: 840D - Powerline
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 rpm 1/MIN
- Spindle motor power: 34 kW
- Tool taper: HSK-A63
- Number of axis: 4
Movement
- X-AXIS Movement: 2000 mm
- X-AXIS Rapid traverse: 40 m/min
- Y-AXIS Movement: 480 mm
- Z-AXIS Movement: 630 mm
Tools
- Number of index: 24 + 74 tool changer positions
Media
- Oil water separator: Yes
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - Internal Cooling Unit: With filter and high-pressure system
- - Laser Tool Breakage Control
- - Oil Mist Separator: 2 mechanical extraction pieces
- - Horizontal Rotary Axis: Peiseler AWD 300 with 2-Jaw chuck @360 mm and counterbearing Peiseler GLP/MK4 + one further Peiseler AWD 300
- - Tailstock (Foldable)
Additional Information
- Technical Machine Benefits:
- - Spindle torque: 140 nm
- - Mounting table: 2600 x 550 mm
- - Efficient tool management with a large number of tool positions.
- - Advanced measurement capabilities with preparation for renishaw touch probe.
- Qualitative Machine Benefits:
- - Precision control with siemens 840d - powerline.
- - Enhanced cooling system for better performance in challenging environments.
- - Transport Information: Requires a wide MEGA-Trailer or a low-bed trailer due to its size (width over 3,000 mm).
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
