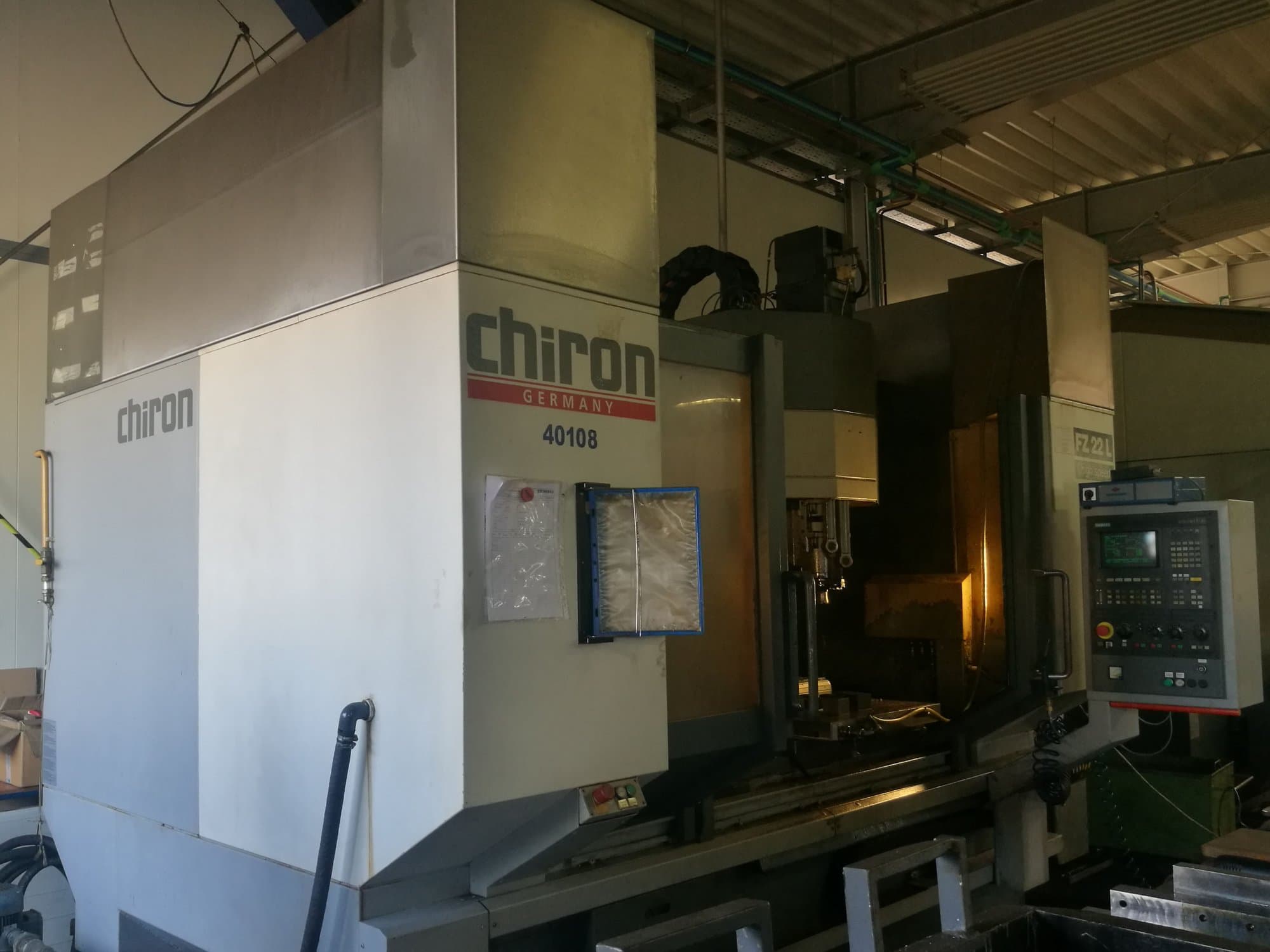

Chiron FZ 18L Vertical Machining Center

Show in original language

This Chiron FZ 18L Vertical Machining Center from 1996 was manufactured in Germany and has a production time of approximately 55000 working hours since then. Operated through a SIEMENS SINUMERIK 810 Control Unit, this fast and well maintained machine has mainly worked with aluminium and titan during the past.

Overview

brand: CHIRON
year: 1996
MODEL: FZ 18L
production hours: 55000
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - CHIRON FZ 18L

General Data

Measurements width: 5665 mm
Measurements depth: 3160 mm
Measurements height: 3000 mm
Machine weight: 7200 kg

Control Unit

Model: SINUMERIK 810
CNC main language: German
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 10500 1/min

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 425 mm

Table

Outer length: 2300 mm
Outer width: 400 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 50 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Automatic Tool Changer with 36 tool slots
- Rotary unit Piesler GRT160
- Chip conveyor knoll

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
