CHIRON - FZ 12 KSPL-MIL-CHI-2011-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
CHIRON FZ 12 KS Vertical Machining Center

Show in original language

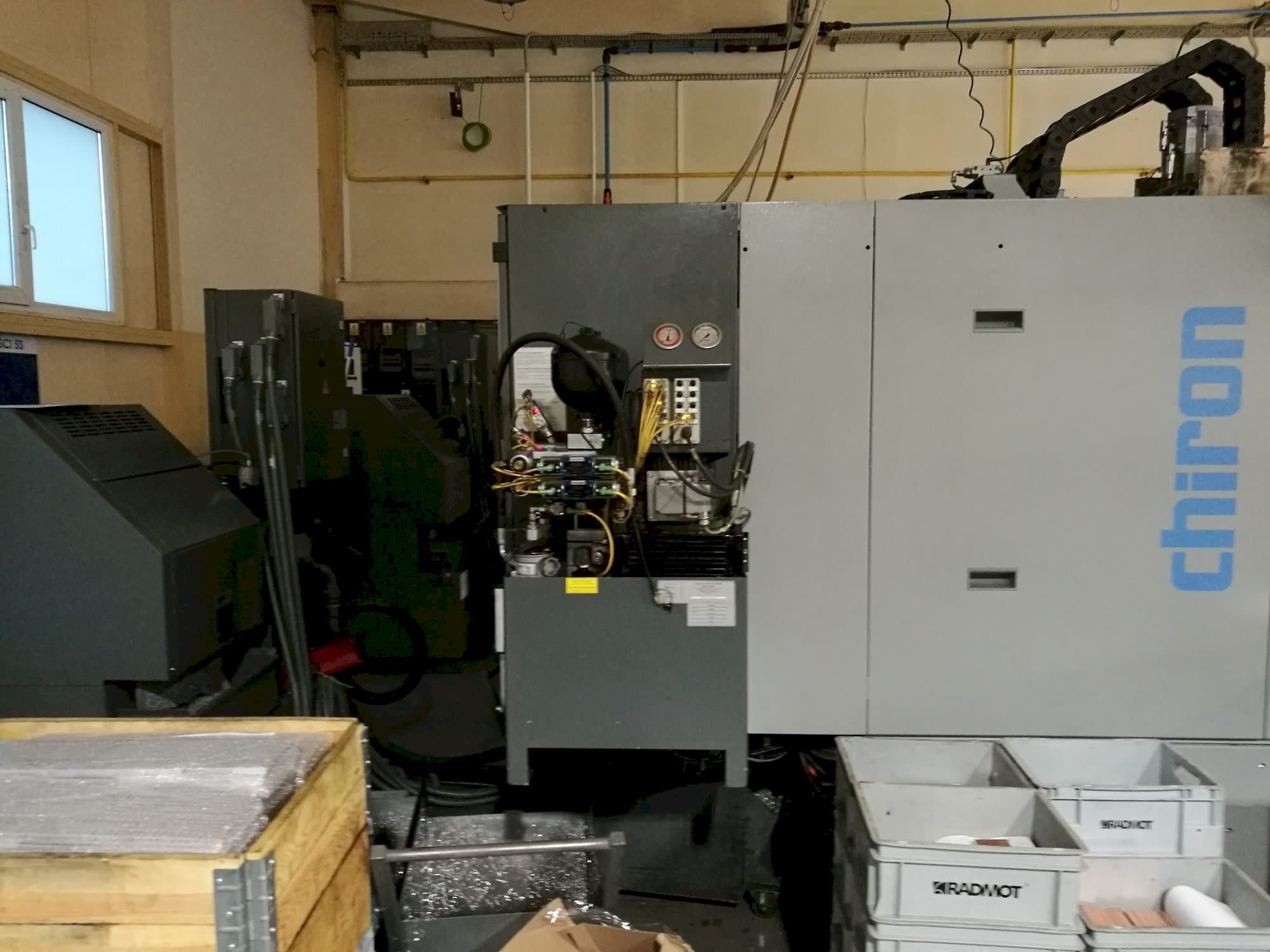

This CHIRON FZ 12 KS Vertical Machining Center from 2011 was made in Germany. Equipped with a SIEMENS SINUMERIK 840 D Control unit, this machine presents a very well maintained status. Several additional equipment is included.

Overview

brand: CHIRON
year: 2011
MODEL: FZ 12 KS
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - CHIRON FZ 12 KS

General Data

Measurements width: 1473 mm
Measurements depth: 3125 mm
Measurements height: 2640 mm
Machine weight: 6800 kg

Control Unit

Model: SINUMERIK 840 D
Brand: SIEMENS

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 360 mm

Table

Outer length: 280 mm

Media

Power consumption: 52 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- 64 PCS TOOL SPACE
- FLEXCELL UNO PALET WAREHOUSE WITH ROBOT
- TOOLS UP 125 MM
- BELT CONVEYOR FOR CHIPS
- OMP 402 LS MEASURING SYSTEM RENISHAW
- 12 PCS OF PALET
- HYDRAULIC AGREGATE 210 BAR
- KFA500 UNIT FOR COOLING LIQUIDES
- ROBOT TYPE FANUC LP MATE 200C

Additional Information

Machine history

Material type: Titanium, stainless steel, hard materials

Machine Benefits

Technical Machine Benefits:
- - Hard materials, compact
- - Spindle tool hsk a 50 din 69893
- - 2 axis swivel rotary table casd 280
- - Automation system with a palette storage flexcell uno
Qualitative Machine Benefits:
- - Serviced by chiron's factory service

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
