CHARMILLES ROBOFIL 2030SI Erosion Machine

Show in original language

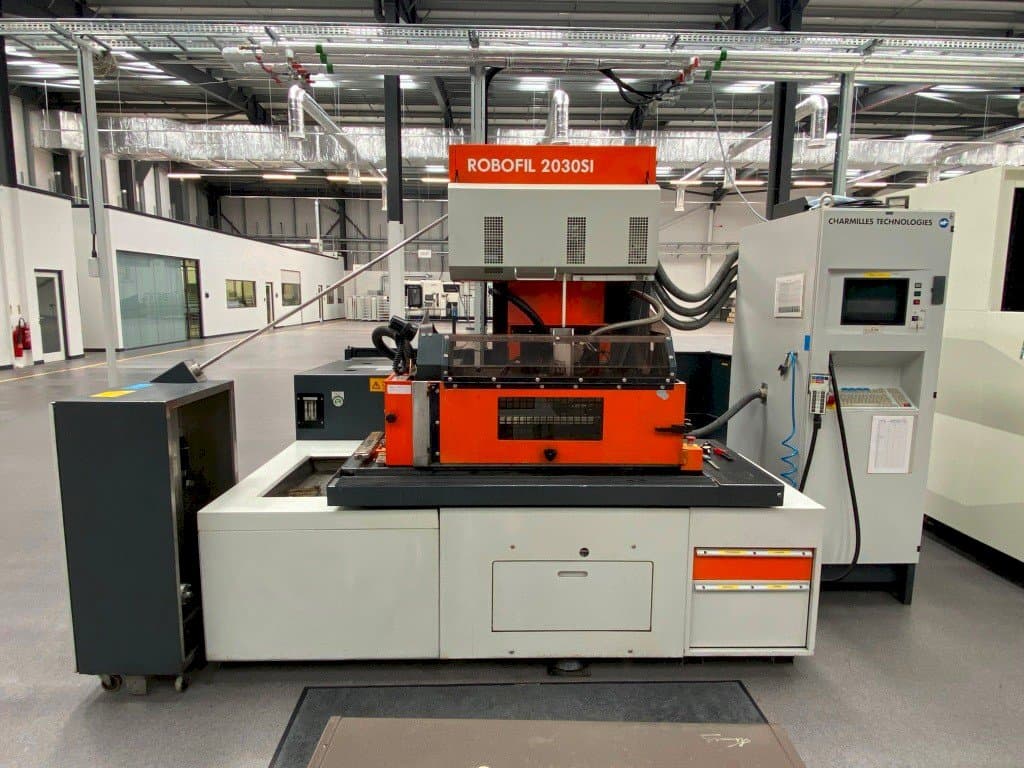

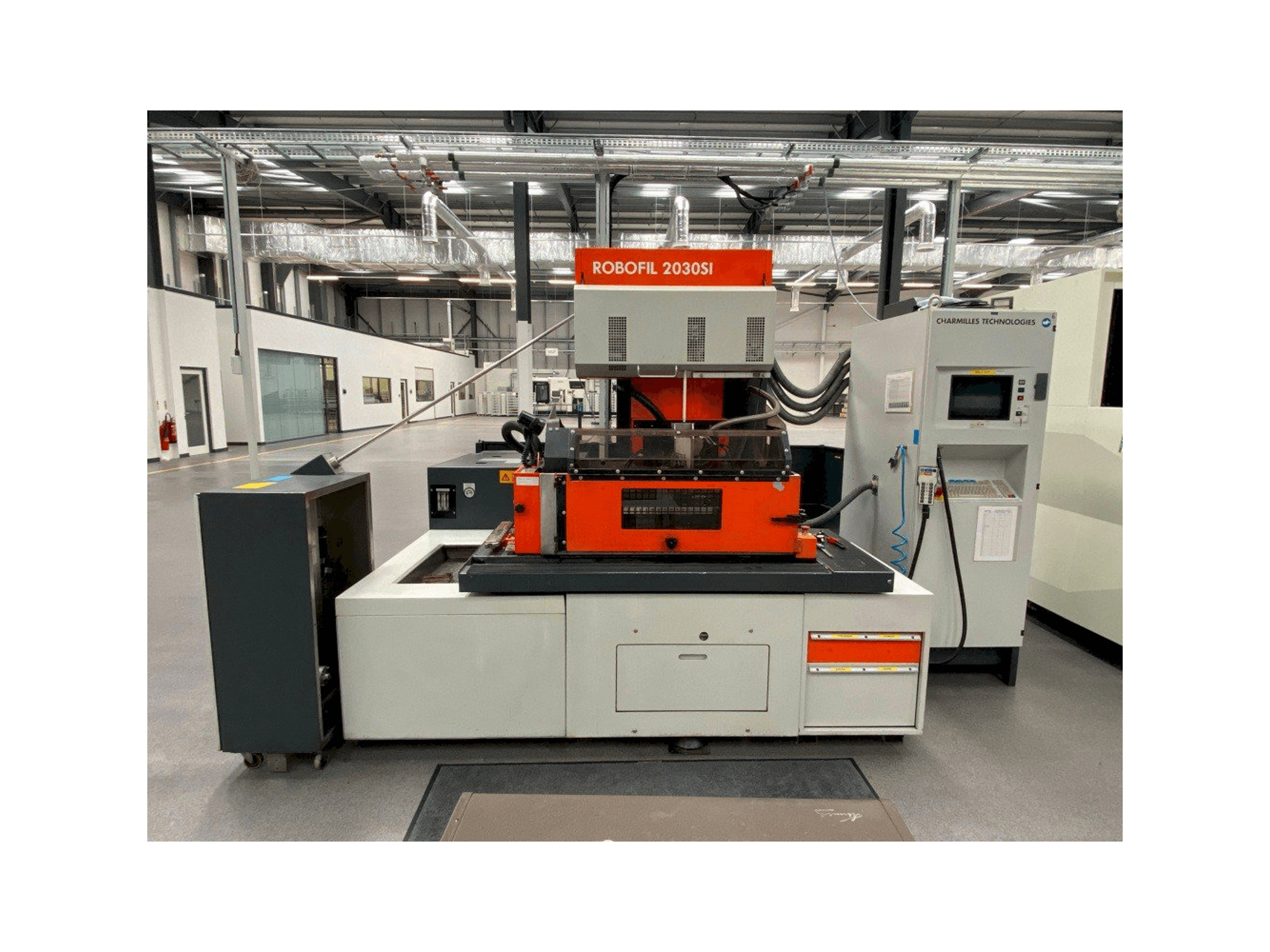

This CHARMILLES ROBOFIL 2030SI Erosion Machine was built in Switzerland in the year 2000. It has a production record of 35775 working hours. This 5 axis machine operated through a Charmilles CNC control unit. It can work with a wire diameter between 0.05 - 0.3 mm. It has been worked for high precision Medical Device components. Well serviced and looked after machine.

Overview

brand: CHARMILLES
year: 2000
MODEL: ROBOFIL 2030SI
production hours: 35775
application type: EDM
Location: Ireland
machine type: Wire EDM Machine
availability: Sold
control unit brand: CHARMILLES

Technical Information - CHARMILLES ROBOFIL 2030SI

General Data

Measurements width: 3700 mm
Measurements depth: 2600 mm
Measurements height: 2300 mm
Machine weight: 2600 kg

Control Unit

Model: CNC
Brand: CHARMILLES

Main drive

Wire diameter: 0.05 - 0.3 mm
Number of axis: 5

Movement

X-AXIS Movement: 320 mm
Y-AXIS Movement: 220 mm
Z-AXIS Movement: 116 mm
U-Axis Movement: +/-48 mm
V-AXIS Movement: +/-48 mm

Workpiece

Workpiece x: 1130 mm
Workpiece y: 510 mm
Workpiece z: 260 mm
Workpiece weight: 500 kg

Table

Outer length: 560 mm
Outer width: 440 mm

Media

Main electronic connection: 400 V
Power consumption: 12 kVa

Additional Equipment

- Auto Wire Feed
- MANN H15 190/16 Di-Electric Filtration Unit
- 240L Di-Elecetric Tank
- Hand Held Control

Additional Information

Machine history

Industries: Medical device

Machine Benefits

Qualitative Machine Benefits:
- - Well serviced and looked after machine
- - Used for high precision medical device components

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
