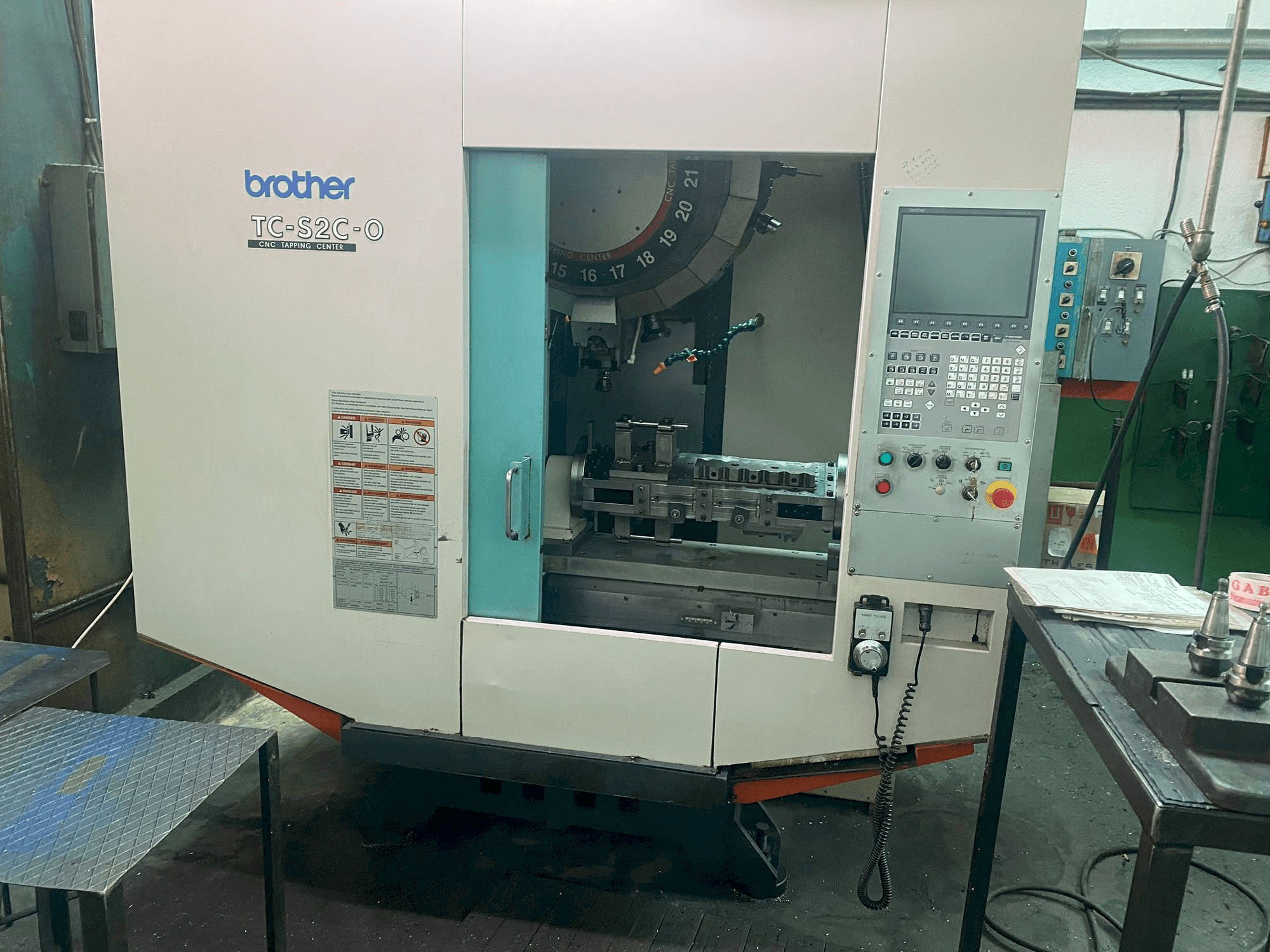

This Brother TC-S2C-0 Vertical Machining Center was manufactured in the year 2007. It is equipped with a brother CNC B00 control unit. This 4 axis machine incorporates 21 slots in storage and can work with a spindle speed up to 10000 rpm. This machine has a 4th trunnion axis and is fully revised.

Overview

brand: Brother
year: 2007
MODEL: TC-S2C-0
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: BROTHER

Technical Information - Brother TC-S2C-0

General Data

Measurements width: 2800 MM
Measurements depth: 2135 MM
Measurements height: 2274 MM
Machine weight: 2800 KG

Control Unit

Model: CNC B00
Brand: BROTHER

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 700 MM
Y-AXIS Movement: 400 MM
Z-AXIS Movement: 300 MM

Workpiece

Workpiece weight: 200 KG

Table

Outer length: 800 MM
Outer width: 320 MM

Tools

Slots in storage: 21
Type of tool holder: BT30

Media

Main electronic connection: 400 V

Additional Equipment

- Coolant tank
- Interface : Ethernet / RS232
- Interactive programming
- Electronic handwheel
- Rigid tapping

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4th axis with trunnion
Qualitative Machine Benefits:
- - Machine has been revised

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
