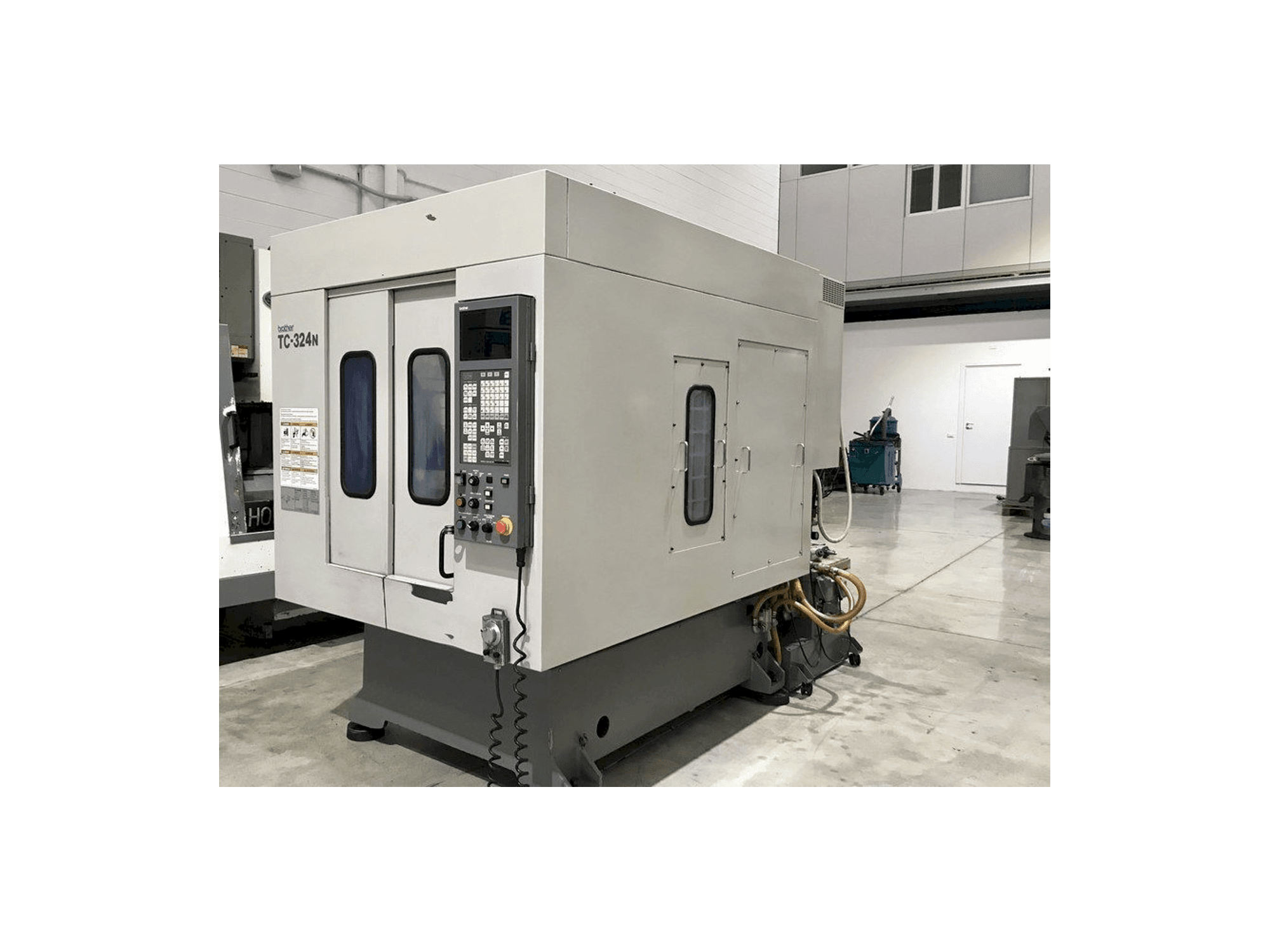

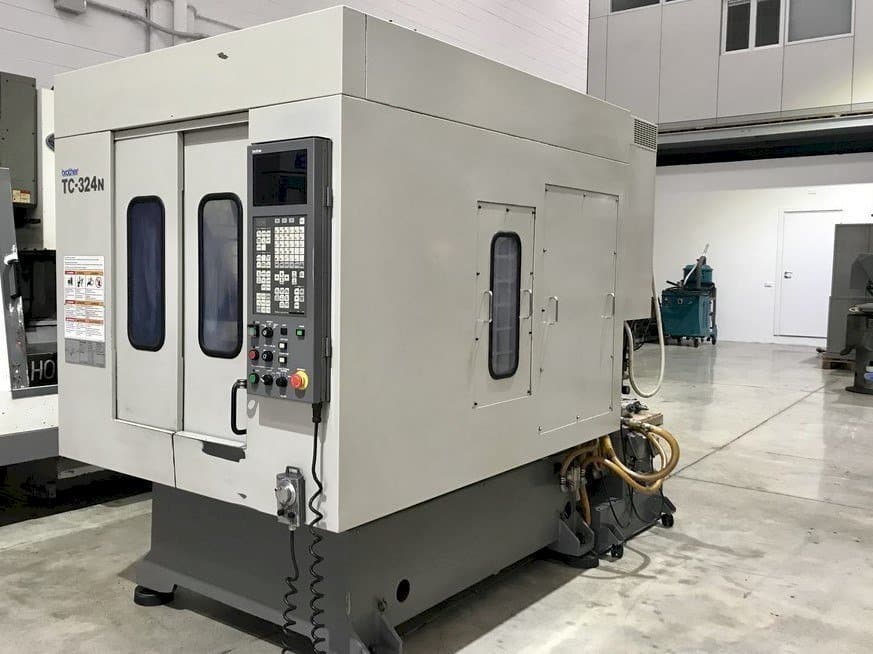

BROTHER TC 324N Vertical Machining Center

Show in original language

This BROTHER TC 324N Vertical Machining Center was made in 2000. It is equipped with a Brother CNC control unit. The machine has a spindle speed of 10000 rpm.

Overview

brand: Brother
year: 2000
MODEL: TC 324N
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: BROTHER

Technical Information - Brother TC 324N

Control Unit

Model: CNC
Brand: BROTHER

Main drive

Spindle speed range: 10000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 420 mm
Y-AXIS Movement: 320 mm
Z-AXIS Movement: 260 mm

Table

Outer length: 500 mm
Outer width: 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Feeds: fast x / y / z axes 30/30/30 m / min
- - Spindle connection iso 30
- - Tool change: tool magazine 14 pos.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
