➤ Used Brother TC-22B-O For Sale | gindumac.com

Show in original language

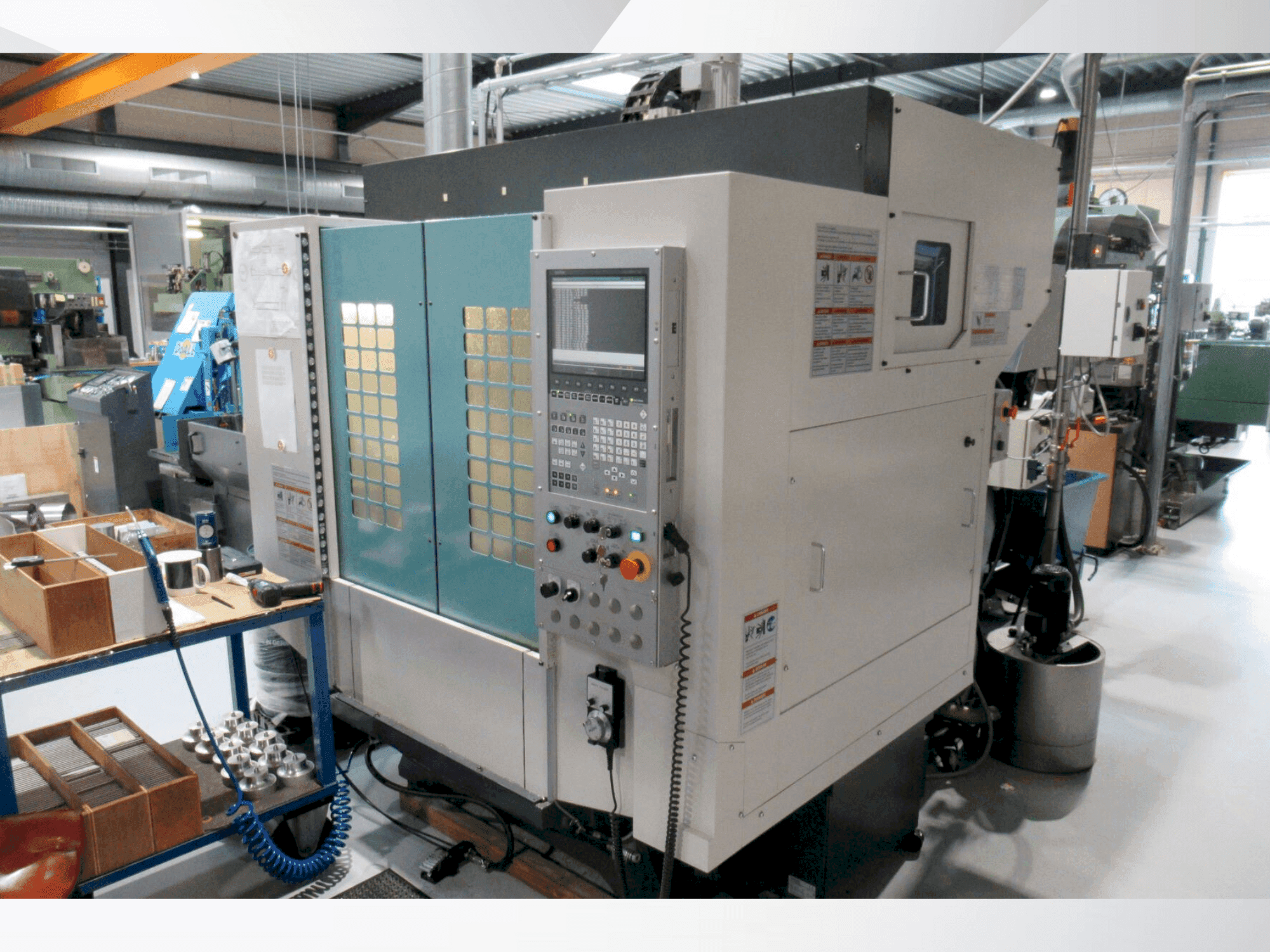

This 5-axis Brother TC-22B-O vertical machining center was manufactured in 2007. It features a high-speed spindle capable of 16,000 rpm and a robust 70 bar through-spindle coolant system. The machine includes an automatic tool changer with 27+1 tool capacity, enhancing productivity and efficiency. The Brother CNC-B00 control unit ensures precise 5-axis control, table is 1 axis. For more information about this vertical machining center, please reach out to us.

Overview

brand: Brother
year: 2007
MODEL: TC-22B-O
application type: Milling
Location: Denmark
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: BROTHER

Technical Information - Brother TC-22B-O

General Data

Measurements width: 3102 mm
Measurements depth: 1496 mm
Measurements height: 2538 mm
Machine weight: 2780 kg

Control Unit

Model: CNC-B00
Brand: BROTHER

Main drive

Spindle speed range: 16 - 16000 rpm 1/MIN
Spindle motor power: 6.0/11 KW (continuous/10 min)
Tool taper: ISO 30
Number of axis: 5

Movement

X-AXIS Movement: 700 MM
Y-AXIS Movement: 450 MM
Z-AXIS Movement: 410 MM

Table

Outer length: 650 mm
Outer width: 850 mm
Table load: 200 kg

Additional Equipment

- Internal Cooling: Yes (70 bar Through-Spindle Coolant)
- Cooling Pressure: 70 bar
- Air Supply: 0.4-0.6 MPa, 180 l/min
- Coolant Tank Capacity: 250 L

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Controlled axes: 5 axes x/y/z – a/b
- - Simultaneous controlled axes: x/y/z + a or b
- - High spindle speed, rapid travel speed, high precision, fast tool change time, high-pressure coolant system
Qualitative Machine Benefits:
- - Precision ball screws, automatic central lubrication, self-diagnosis functions

Extra information

- Control Cabinet: Sealed and dustproof Power Source (NC/Servo Power): AC 200/220V, +10% -15%, 50 Hz +/- 1 Hz, 8.5 KVA Environmental Conditions: Room temperature 0-45°C, Relative humidity 10-90%, Vibration 0.5 G or less

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
