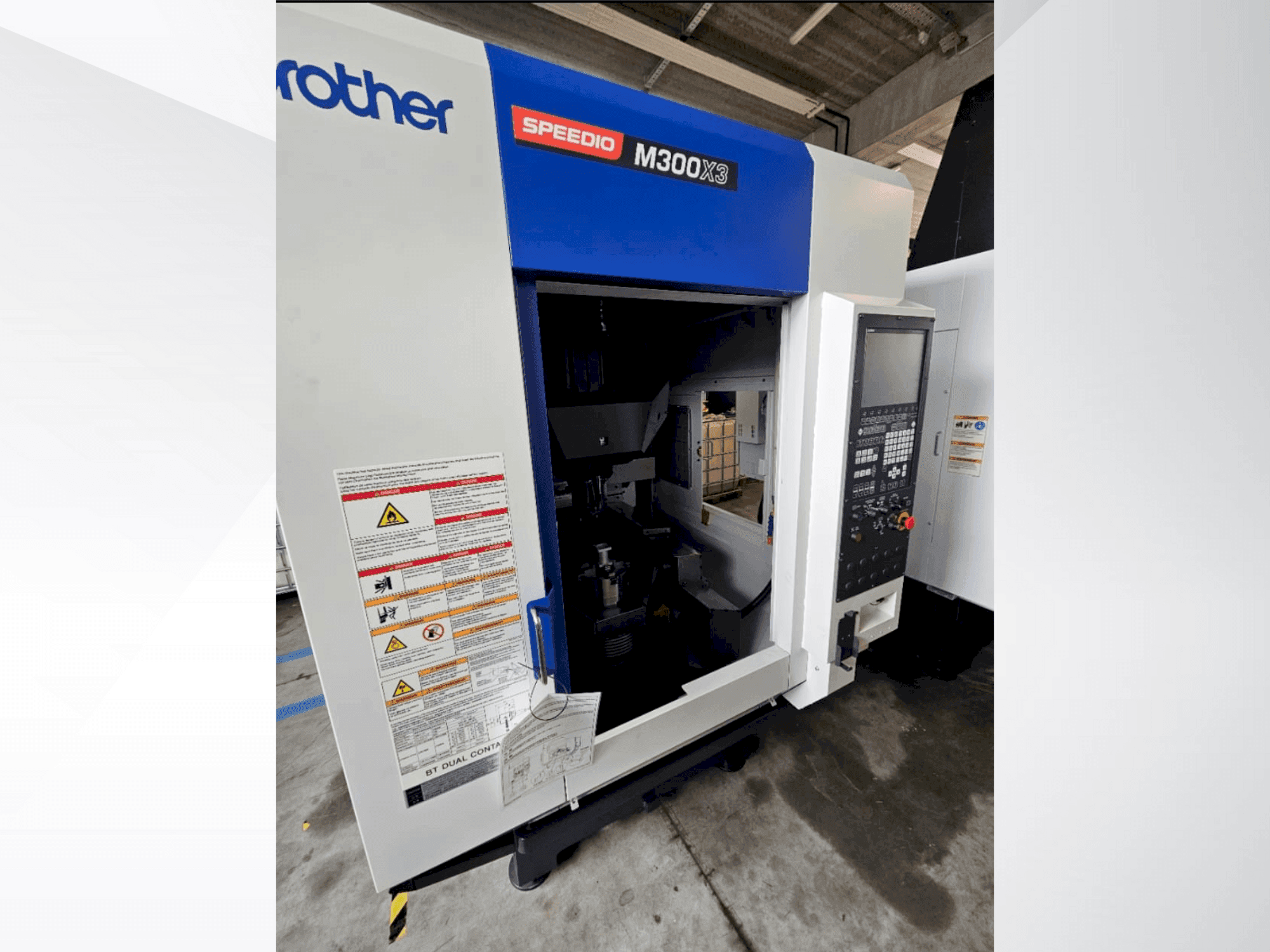

Brother - Speedio M 300 X3SI-MIL-BRO-2024-00001

Additional Equipment

• - Tool Holder: 7/24 tapered No. 30 / Tool Storage Capacity: 22 tools / Tool Shank Type: MAS-BT30
• - Tool Dimensions: Diameter: 100 mm / Length: 200 mm / Weight: 3 kg
• - Tool-to-Tool Time: 0.8 sec
• - Chip-to-Chip Time: 1.6 sec
• - BT Dual Contact Spindle (BIG-PLUS): Optional / Coolant Through Spindle (CTS): Optional

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Table distance (top to spindle nose): 200 mm to 505 mm / table loading capacity: 75 kg / table load inertia: table side: 0. 58 kg·m², tail side: 0. 04 kg·m²
  • - Rapid traverse rate (x, y, z): 50 m/min
  • - Spindle speed: 16000 min⁻¹ / speed during tapping: max 6000 min⁻¹ / turning spindle speed: 1500 min⁻¹ / main spindle motor power: 10. 1/7. 0 kw
  • - Axis feed motor power: x, y: 1. 0 kw / z: 1. 35 kw
  • - Power supply: 200/210 v, 50/60 hz / continuous power capacity: 10 kva
  • - Positioning accuracy (bidirectional): 0. 006 mm / repeatability (bidirectional): 0. 004 mm
  • - Floor space: 1520 mm x 3862 mm / height: 2653 mm / weight: 2880 kg
