Bridgeport VMC 600/22 Digital

Show in original language

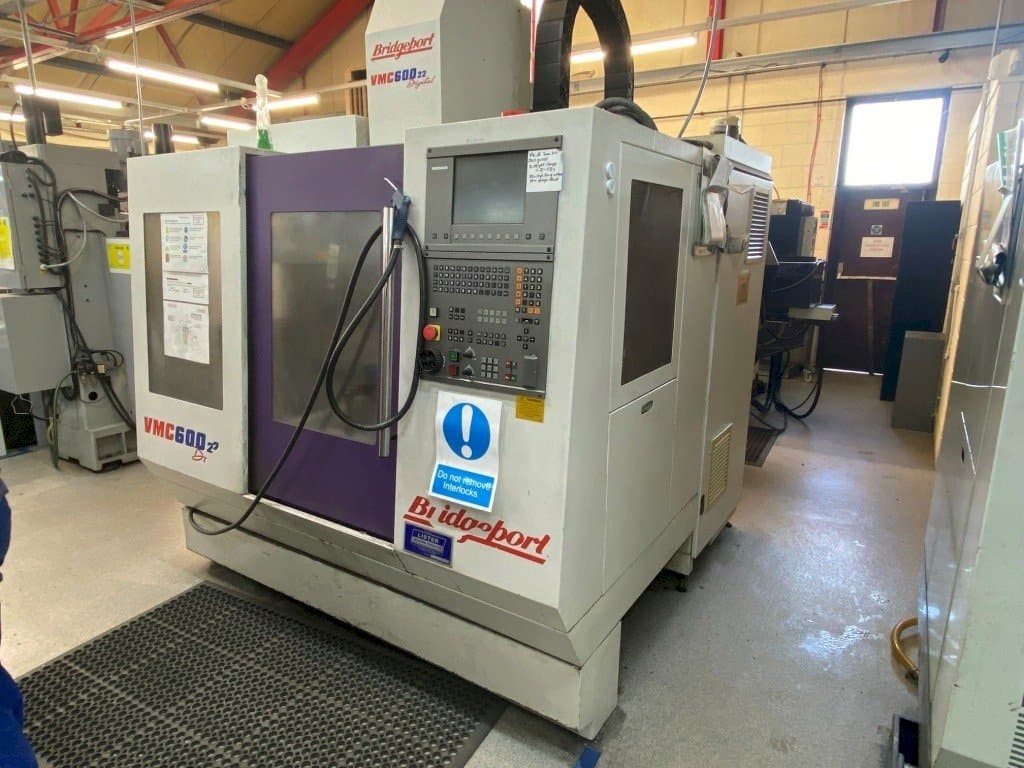

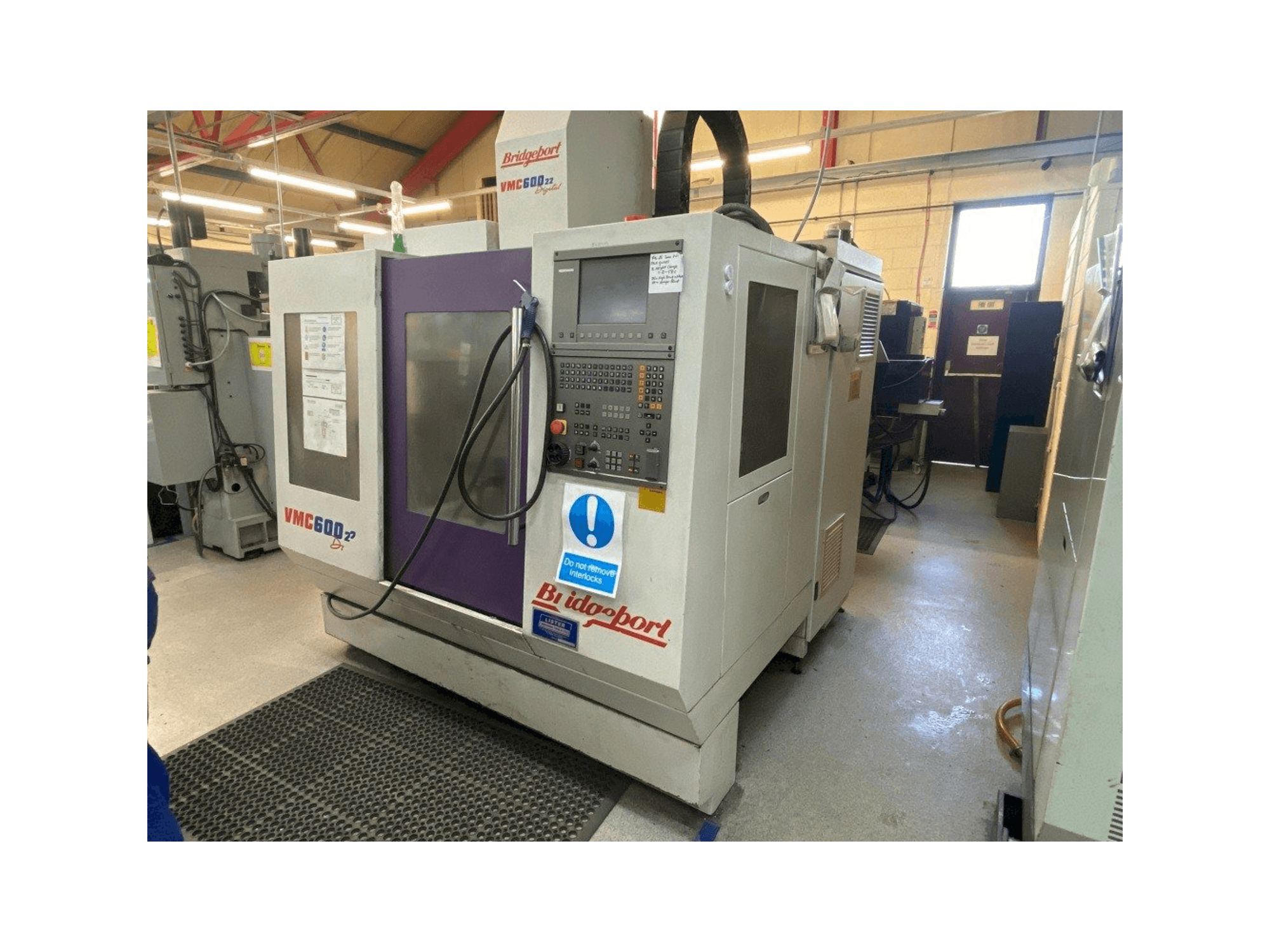

This Bridgeport VMC 600/22 Digital Vertical Machine Center was manufactured in United Kingdom in the year 1999. It is equipped with a Heidenhain TNC 426PB control unit. It operates with a spindle speed up to 6000 rpm. It is 3 axis and the Nikken Unit is 2 Axis. This machine has been working in the manufacturing of medical device parts. It is in very good condition and very well mantained.

Overview

brand: Bridgeport
year: 1999
MODEL: VMC 600/22 Digital
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: Heidenhain

Technical Information - Bridgeport VMC 600/22 Digital

General Data

Measurements width: 2000 mm
Measurements depth: 2050 mm
Measurements height: 2535 mm
Machine weight: 2500 kg

Control Unit

Brand: Heidenhain
Model: TNC 426PB
CNC main language: english
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 410 mm
Z-AXIS Movement: 520 mm

Table

Outer length: 840 mm
Outer width: 420 mm

Tools

Slots in storage: 22
Max weight: 6 kg
Max tool diameter: 130 mm
Max tool length: 250 mm
Type of tool holder: BT40

Media

Main electronic connection: 400 V

Additional Information

Machine history

End product: Medical device parts
Industries: Medical device industry

Machine Benefits

Technical Machine Benefits:
- - The machine is 3 axis
- - The nikken unit is 2 axis
Qualitative Machine Benefits:
- - Very well maintained machine
- - Very good condition

Extra information

- Machine vice in photos not included in sale

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
