Products
Sheet Metal Machinery

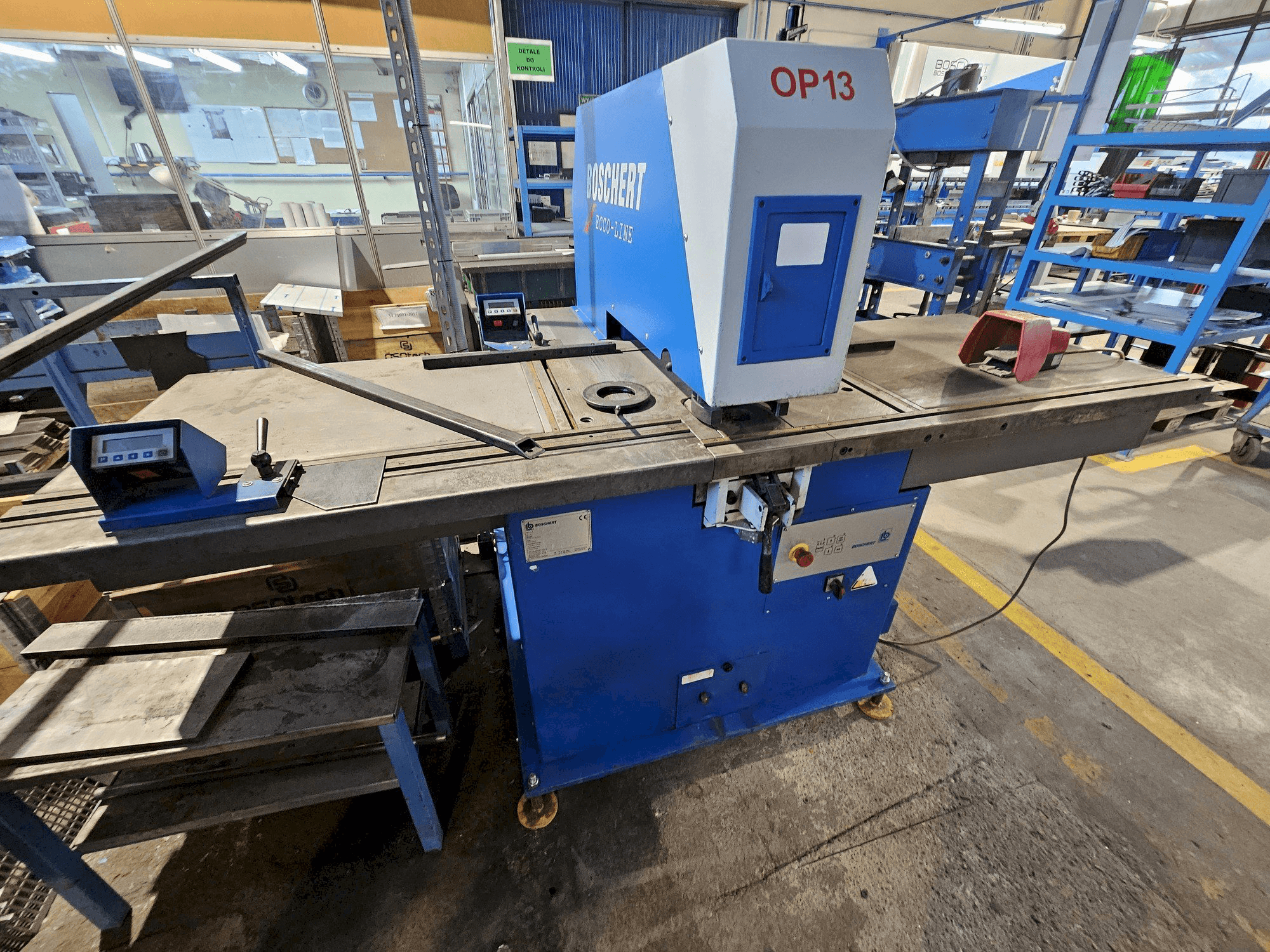

BOSCHERT EL 500 Digital Punching machine

Show in original language

This BOSCHERT EL 500 Digital Punching machine was manufactured in the year in Germany. It is equipped with a Boschert control unit. The machine has a punching force of 280 kN.

Overview

brand: BOSCHERT
year: 2015
MODEL: EL 500 Digital
application type: Punching
Location: Poland
machine type: Turret Punch Press
availability: Sold
control unit brand: BOSCHERT

Technical Information - BOSCHERT EL 500 Digital

General Data

Measurements width: 2400 mm
Measurements depth: 1580 mm
Measurements height: 1540 mm
Machine weight: 2500 kg

Control Unit

Brand: BOSCHERT

Main drive

Punching force: 280 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working area: 570 x 1200 mm
- - Machine frame reach (y-axis): 500 mm
- - Economical, rigid construction
- - Easy access to the tool station for retooling
- - Capability to mount tools up to Ø 105 mm in size
- - Max material thickness for processing up to 12. 7 mm
- - Standard trumpf tool system providing short retooling time of about 15 s
- - Extended head stroke allowing punching of holes in profiles
- - T-slots along with a built-in ruler in the machine table enable precise basing of the material being processed
- - Passive and active scraper system
Qualitative Machine Benefits:
- - 3 types of operation: setting, single stroke, continuous stroke

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
