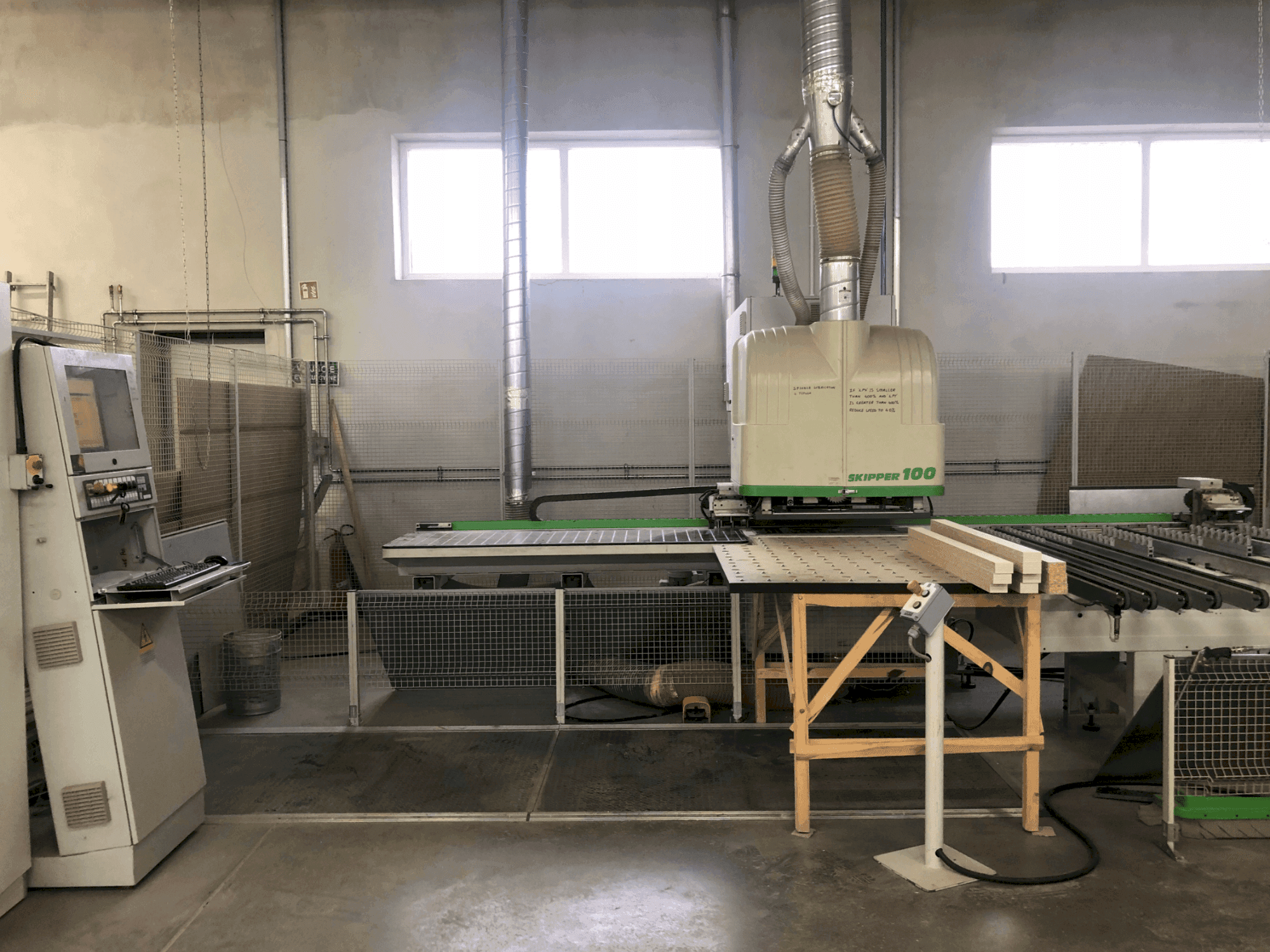

BIESSE - SKIPPER 100PL-CNC-BIE-2009-00001

Additional Equipment

• - Roller infeed table
• - Upper pressure table
• - Lower pressure table
• - Upper and lower working units
• - Belt outfeed conveyor (right side)
• - Electronic thickness control
• - Automatic central lubrication
• - CNC control system: XP 600 with Soft CN
• - Safety system

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Electrospindle type: hsk
  • - Injection unit power: 3. 5 kw
  • - Workpiece length: 90–3000 mm
  • - Workpiece width: 70–1000 mm
  • - Workpiece thickness: 8–60 mm
• Qualitative Machine Benefits:
  • - Condition: well maintained and regularly serviced

Extra information

• - Dimensions of Machine (LxWxH) Working Range X Axis: Vertical Drilling: 0–3000 mm Horizontal Drilling in X and Y: 0–3000 mm Continuous Milling: 0–2500 mm Partial Milling: 0–3000 mm Continuous Grooving with Saw: 0–2500 mm Partial Grooving with Saw: 0–3000 mm Working Range Y Axis: Vertical Drilling: 0–1000 mm Vertical Drilling with System 32: 32–1000 mm Horizontal Drilling in X: 0–1000 mm Horizontal Drilling in Y: 90–1000 mm Milling: 0–950 mm Grooving with Saw: 112–1000 mm Working Range Z Axis: Material Thickness: 0–60 mm Tools Total Spindles: 78 Top Unit: 39 Bottom Unit: 39 Vertical Spindles: Total: 29 In X Direction: 19 In Y Direction: 10 Horizontal Spindles in X: Double Output: 4 Independent Horizontal Spindles: In X Direction: 2 In Y Direction: 2
