bielomatik K3216 Vibration welding machine for plastic

Show in original language

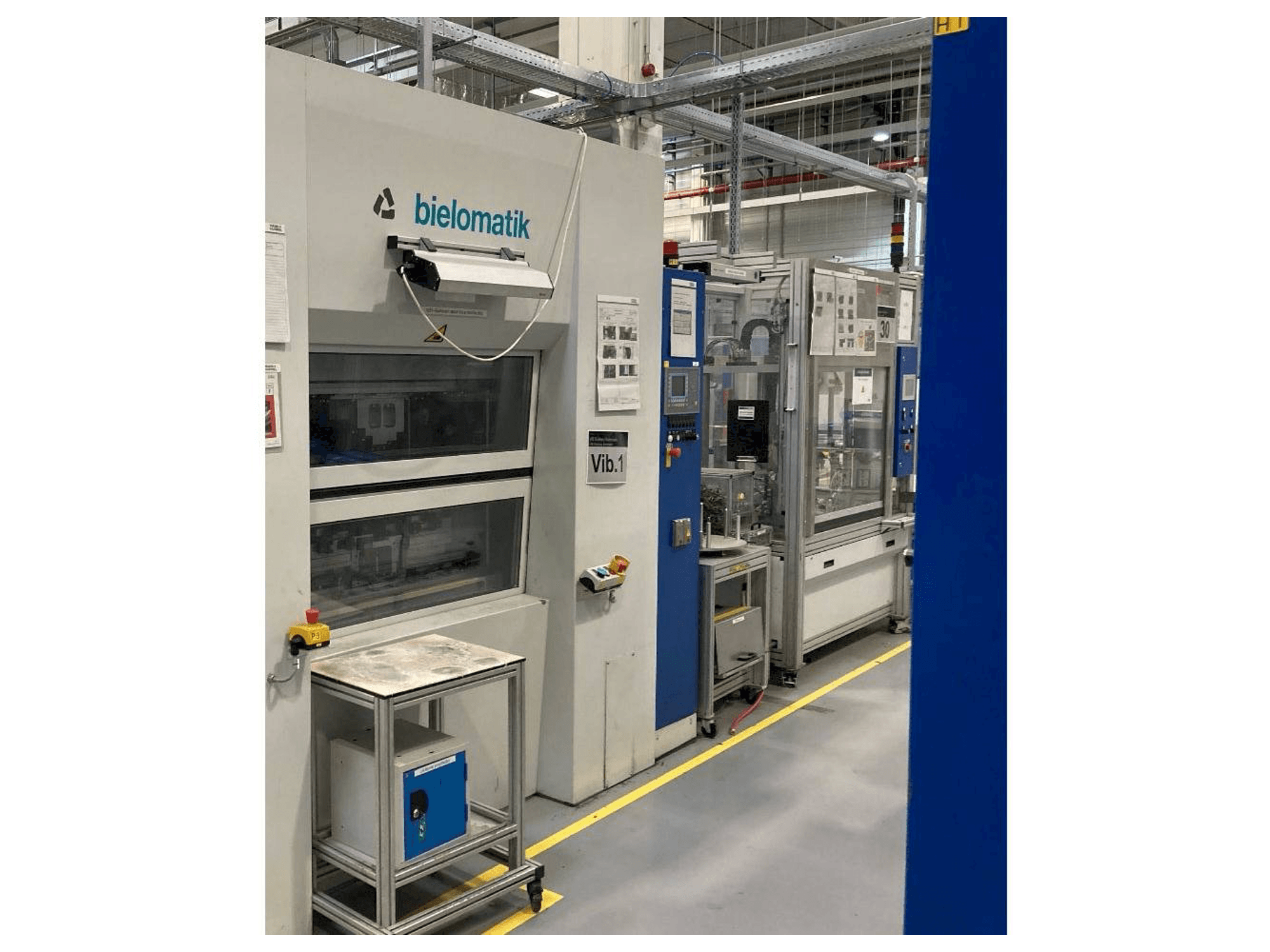

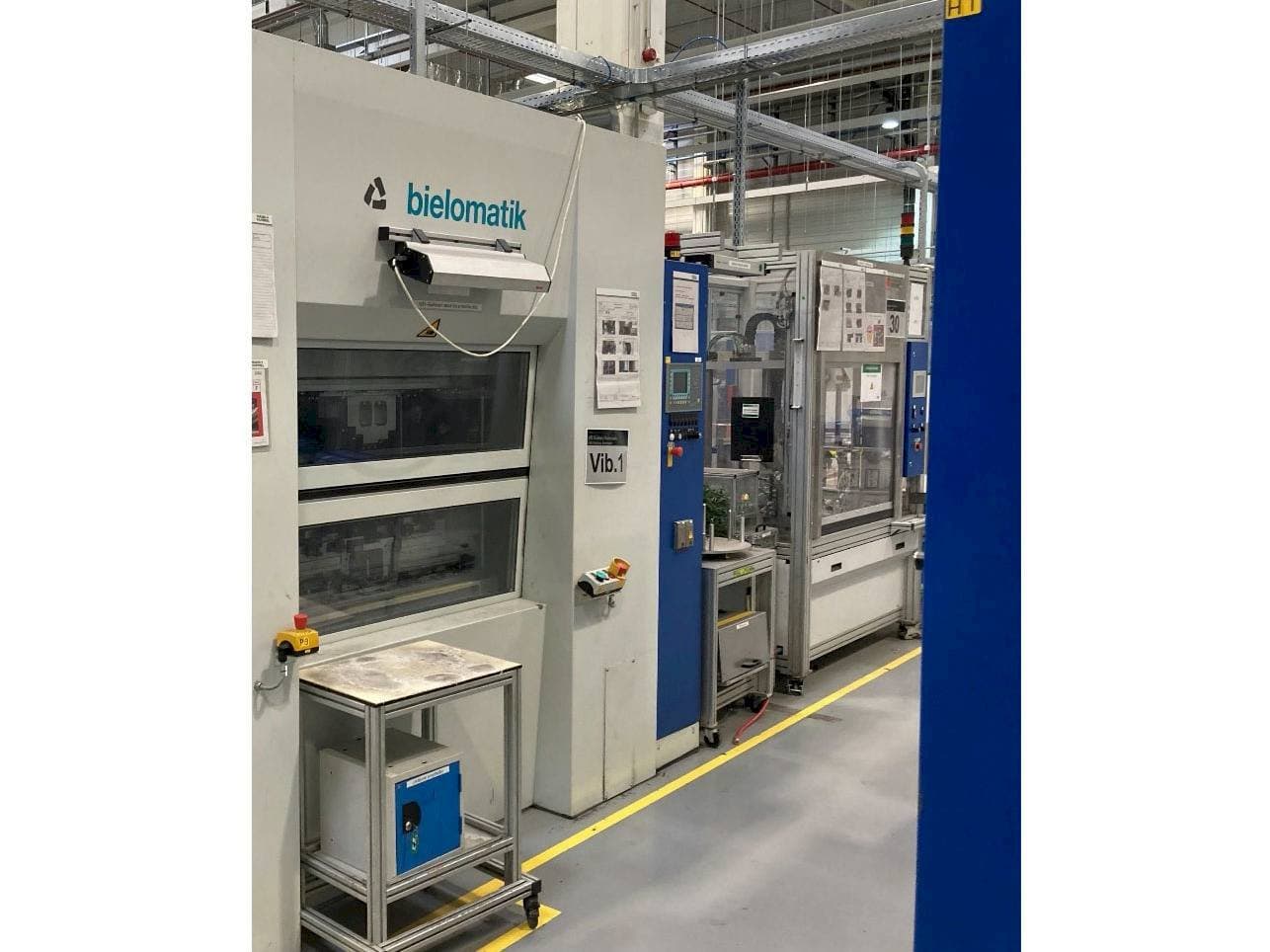

This bielomatik K3216 Vibration welding machine for plastic was manufactured in the year 2014 in Germany. It is equipped with a Siemens S7 with an OP277 control unit.

Overview

brand: bielomatik
year: 2014
MODEL: K3216
application type: Cutting
Location: Germany
machine type: Tube Cutting Machine
control unit brand: SIEMENS

Technical Information - bielomatik K3216

General Data

Measurements width: 3200 mm
Measurements depth: 1960 mm
Measurements height: 2780 mm
Machine weight: 4500 kg

Control Unit

Model: S7 with OP277
Brand: SIEMENS

Media

Main electronic connection: 400 V
Power consumption: 20 kva

Additional Information

Machine Benefits

Qualitative Machine Benefits

Amplitude - adjustable: max 1. 3 mm
Tooling weight: up to 90 kg
Positioning accuracy depth measuring: for machine: +/- 0. 05 mm

Technical Machine Benefits

Upper vibration head size: 1220 x 530 mm
Standard upper tooling plate: 1220 x 530 mm
Lower machine table size: 1320 x 540 mm
Standard lower tooling plate: 1320 x 540 mm
Clearance between the table and the head: 770 mm
Table stroke: 550 mm
Min. Tooling height: 220 mm
Clamp force (machine table): 24800 n
Drive force vibration drive: 16500 n
Frequency - variable, depending on tool weight: 170 - 240 hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
