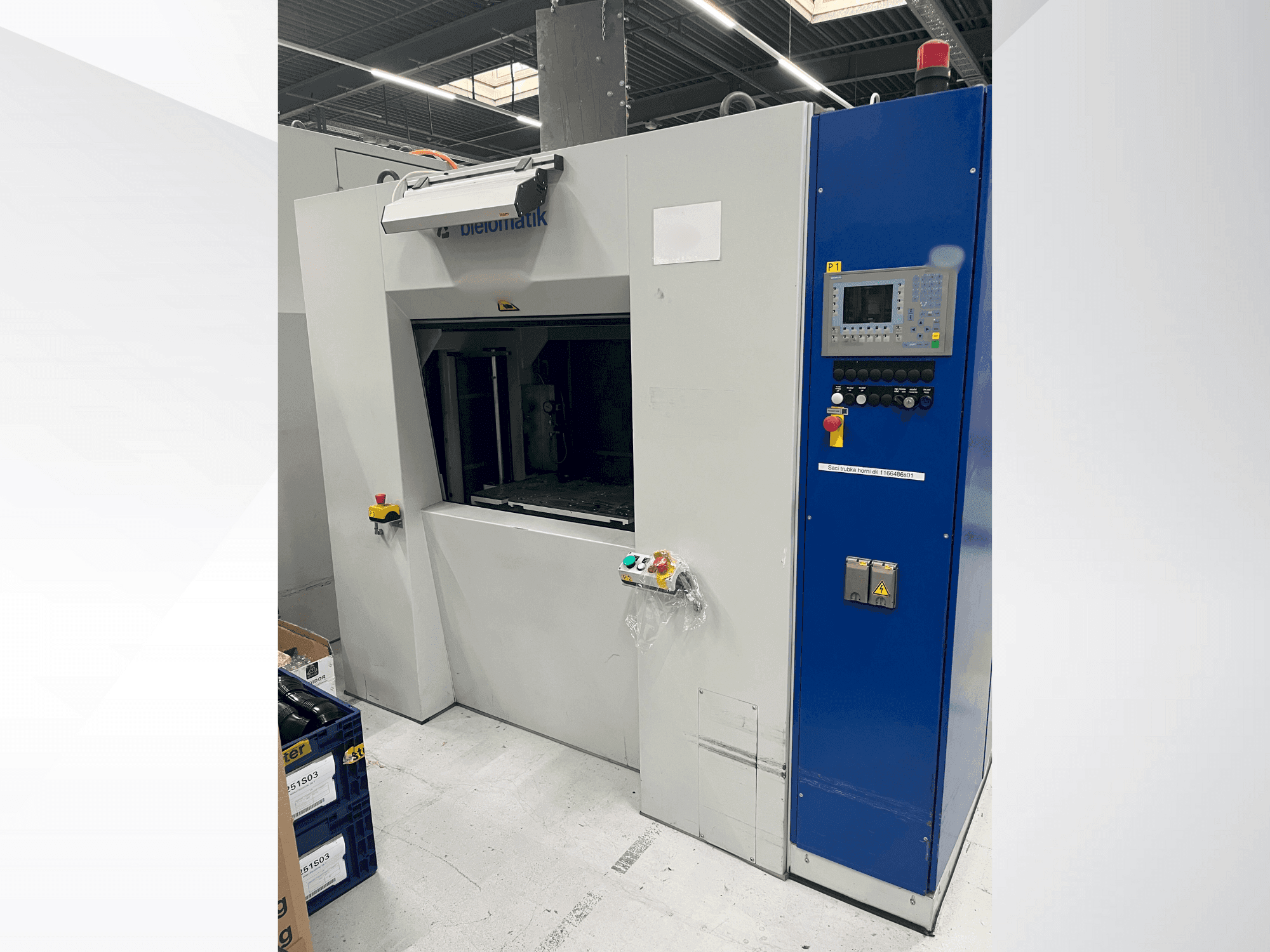

bielomatik - K3212DE-OTH-BIE-2014-00002

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Rated voltage: 3 phases / 380 v
  • - Frequency: 50 hz
  • - Full-load current: 25 a
  • - Fuse protection power supply: 32 a
  • - Short circuit breaking capacity: 10 ka
  • - Power equipment: 17 kva
  • - Control voltages: ac 230 v / dc 24 v
  • - Floor space required: approx. 5600 x 4800 mm
  • - Lift table (vertical stroke): max. 500 mm
  • - Opening width: max. 705 mm
• Qualitative Machine Benefits:
  • - Clamping area of the lift table: max. 920 mm x 530 mm
  • - Clamping area of the vibration unit: max. 900 mm x 540 mm
  • - Amplitude (setpoint): 0. 3–1. 2 mm with a resolution of ± 0. 01 mm
  • - Tolerance, adjustable in steps: ± 0. 1 mm to ± 0. 4 mm
  • - Frequency range: approx. 170 hz – 240 hz
  • - Welding force: max. 11400 n
  • - Drive forces: up to max. 2 x 10700 n
  • - Amplitude must be set approximately 0. 2 mm smaller than the minimum clearance of the welding parts to prevent damage to the vibration unit.
  • - Cycle times depend on several factors, including the quality and uniformity of the welding parts, machine maintenance, and the availability of welding parts.

Extra information

• - Machine still under power
