- Bernardo UWF 95 N Universal Milling Machine

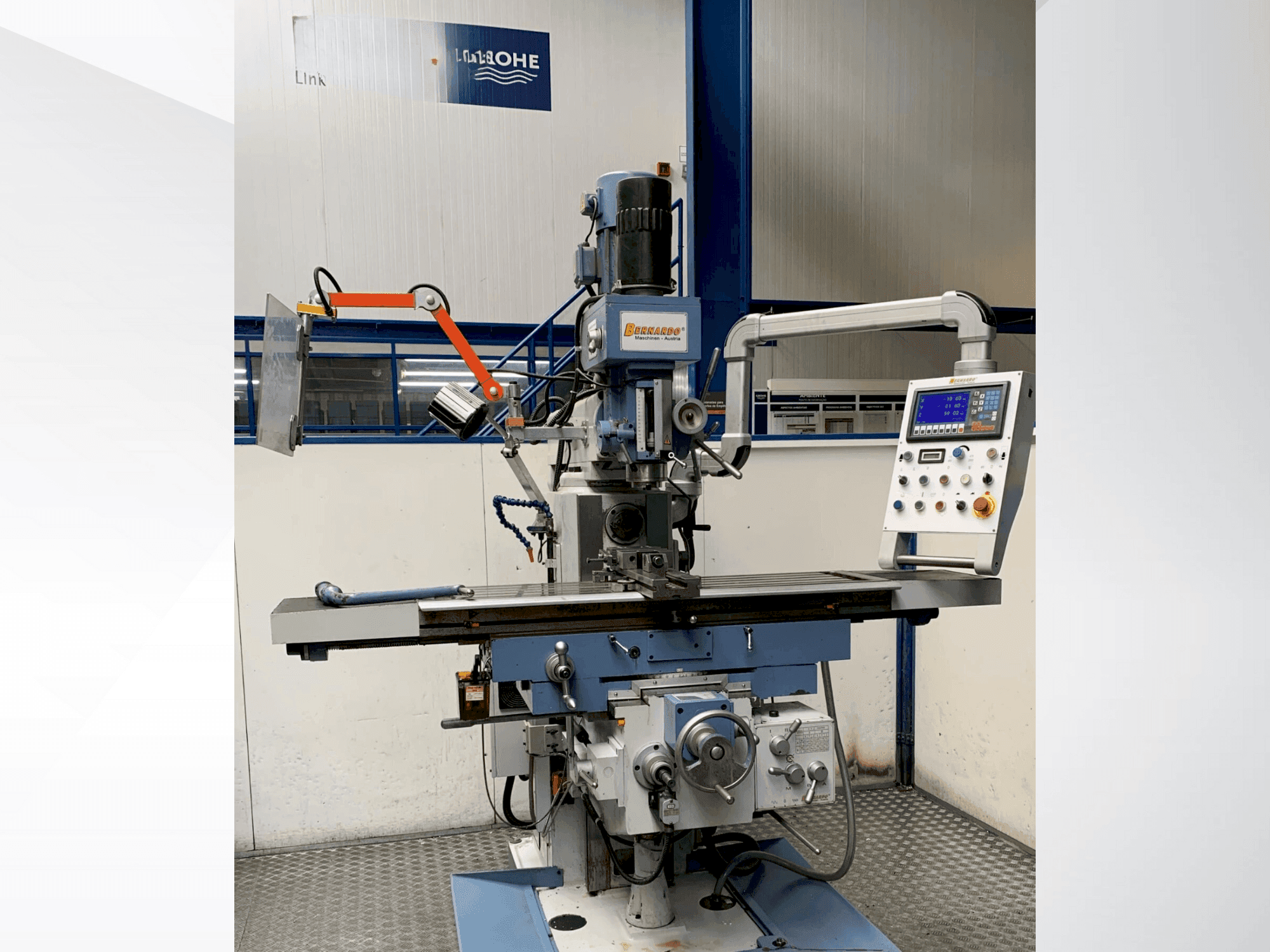

This Bernardo UWF 95 N Universal Milling Machine was built in the year 2020 in Austria. It is equipped with a Bernardo control unit. The machine has a vertical spindle speed of 90 - 2000 rpm and a horizontal spindle speed of 40 - 1300 rpm.
Overview
- brand: Bernardo
- year: 2020
- MODEL: UWF 95 N
- application type: Milling
- Location: Portugal
- machine type: Milling Machine
- availability: Sold
- control unit brand: Bernardo
Technical Information - Bernardo UWF 95 N
General Data
- Measurements width: 2300 mm
- Measurements height: 2400 mm
- Machine weight: 2200 kg
- Measurements depth: 1960 mm
Control Unit
- Brand: Bernardo
Main drive
- Tool taper: ISO 40
Movement
- Y-AXIS Rapid traverse: 1208 mm/min
- X-AXIS Movement: 1300 mm
- X-AXIS Rapid traverse: 1290 mm/min
- Y-AXIS Movement: 300 mm
- Z-AXIS Movement: 400 mm
- Z-AXIS Rapid traverse: 513 mm/min
Table
- Outer length: 1600 mm
- Outer width: 360 mm
Additional Information
- Technical Machine Benefits:
- - Spindle speed vertical: (8) 90 - 2000 rpm, motor power vertical: 2. 2 kw
- - Spindle speed horizontal: (12) 40 - 1300 rpm, motor power horizontal: 2. 2 kw
- - Spindle stroke: 120 mm
- - Spindle feed: 0. 08 / 0. 15 / 0. 25 mm/rev.
- - Distance spindle to column: 150 - 770 mm
- - Table util table: -45° to +45°
- - Spindle head tilting range: -90° to +90°
- - Distance spindle / table: 120 - 520 mm
- - Feed range longitudinal: (8) 22 - 420 mm/min, feed range cross: (8) 22 - 393 mm/min, feed range vertical: (8) 6 -112 mm/min
- - T-slot size: 14 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
