GINDUMAC
Products
Sheet Metal Machinery

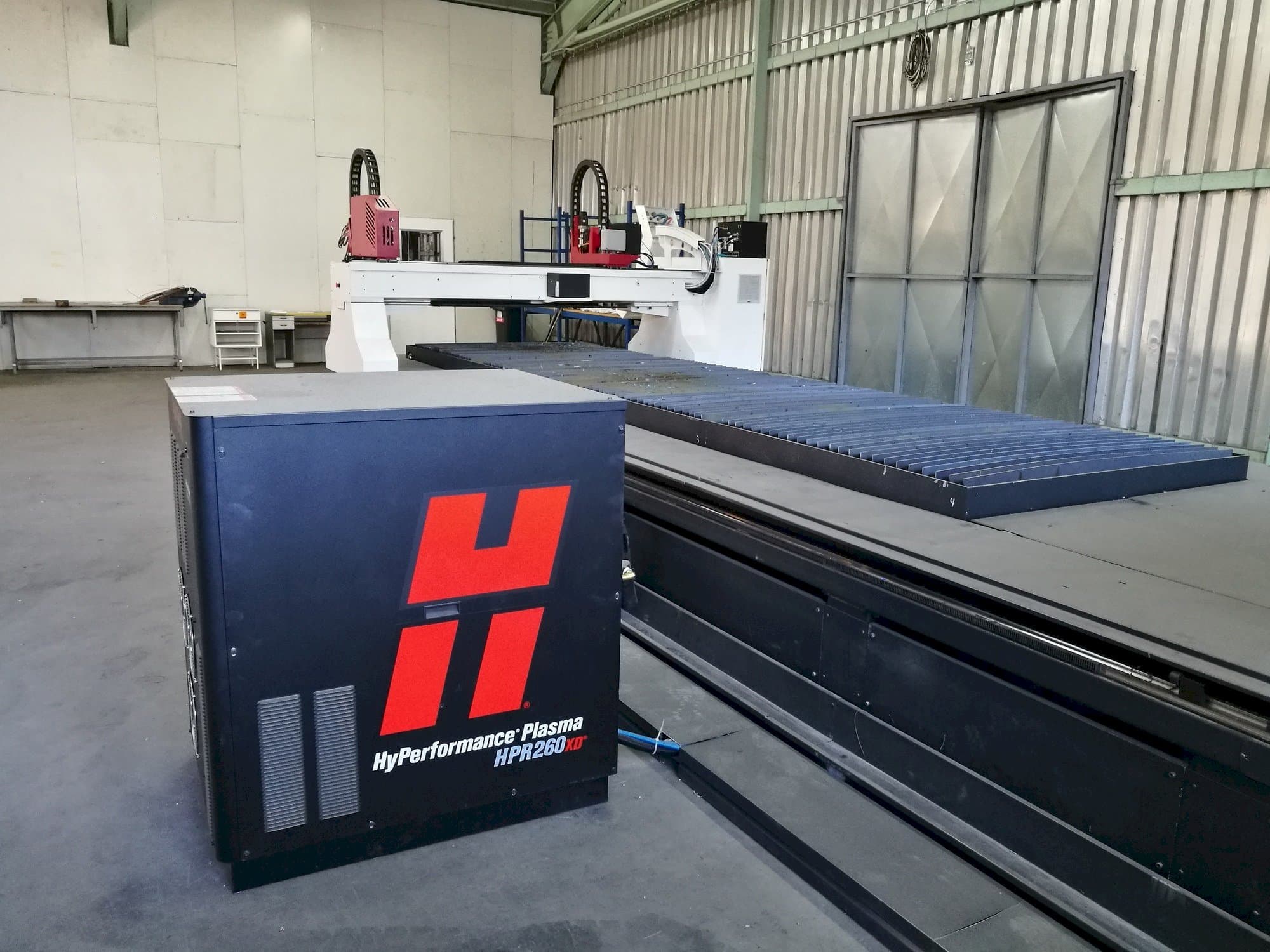

Baykal BPL-H 1506 Plasma Cutting Machine

Show in original language

This Baykal BPL-H 1506 Plasma Cutting Machine was built in the year 2014 in Turkey and has been working for only 40 hours since then. Equipped with a Tecnos PC 12 Control unit, this machine stands out for its large cutting area of 1550 x 6100 mm. It presents perfectly good conditions, as it is almost new. It counts with a valid warranty until June 2020.

Overview

brand: Baykal
year: 2014
MODEL: BPL-H 1506
production hours: 40
application type: Cutting
Location: Hungary
machine type: Plasma Cutting Machine
availability: Sold

Technical Information - Baykal BPL-H 1506

General Data

Measurements width: 3000 mm
Measurements depth: 8200 mm
Measurements height: 2400 mm
Machine weight: 7500 kg

Control Unit

Model: PC 12

Main drive

Plasma brand: Hypertherm HPR 260XD
Plasmapower: 260 A

Movement

X-AXIS Movement: 1700 mm
Y-AXIS Movement: 6400 mm

Table

Outer length: 1550 mm
Outer width: 6100 mm

Max Material thickness

Steel: 64 mm
Stainless steel: 50 mm

Media

Main electronic connection: 400 V

Additional Equipment

- Vantem PL-8000

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Installed in april 2018
- - Has a valid warranty until june 2020

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
