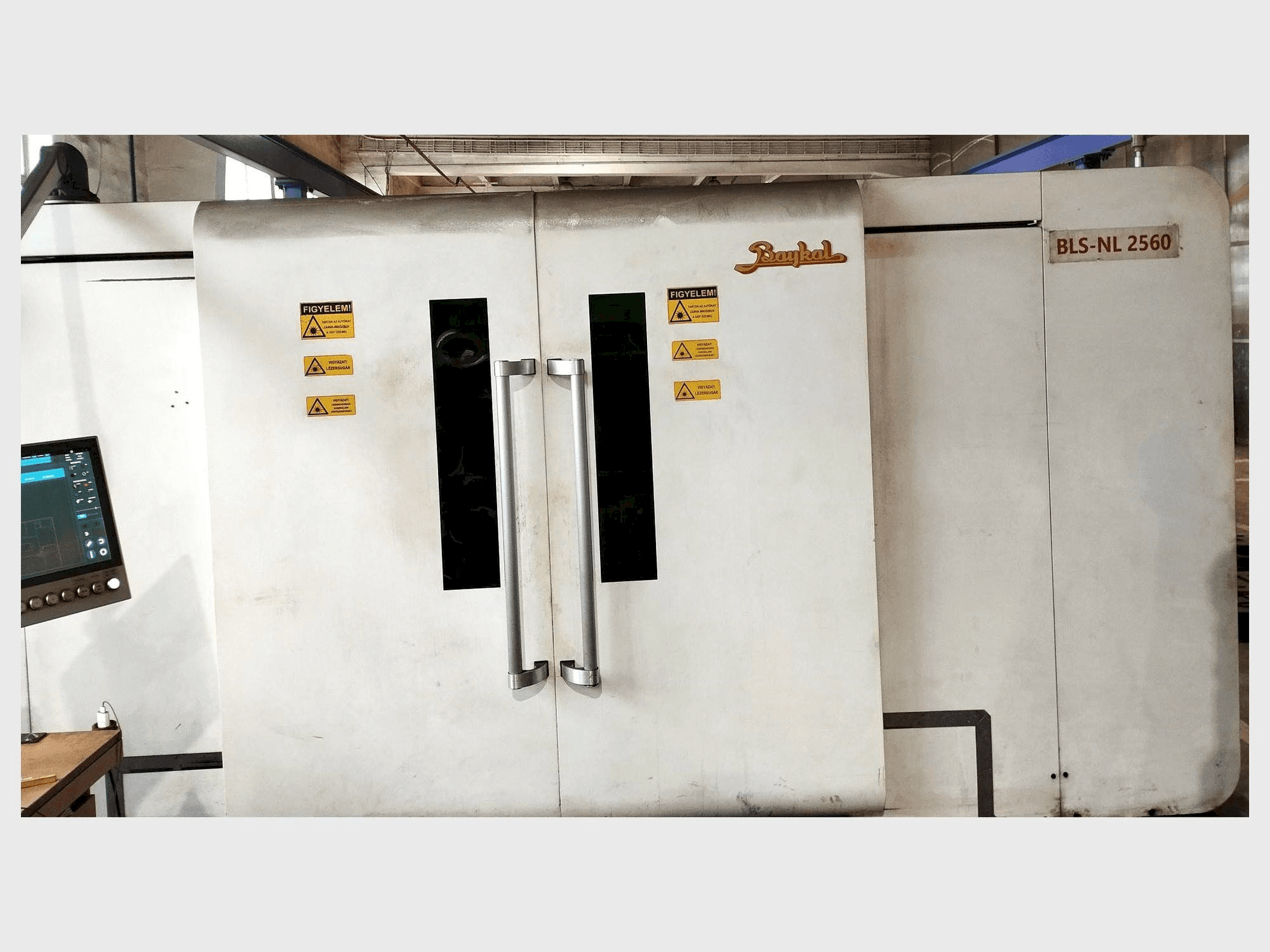

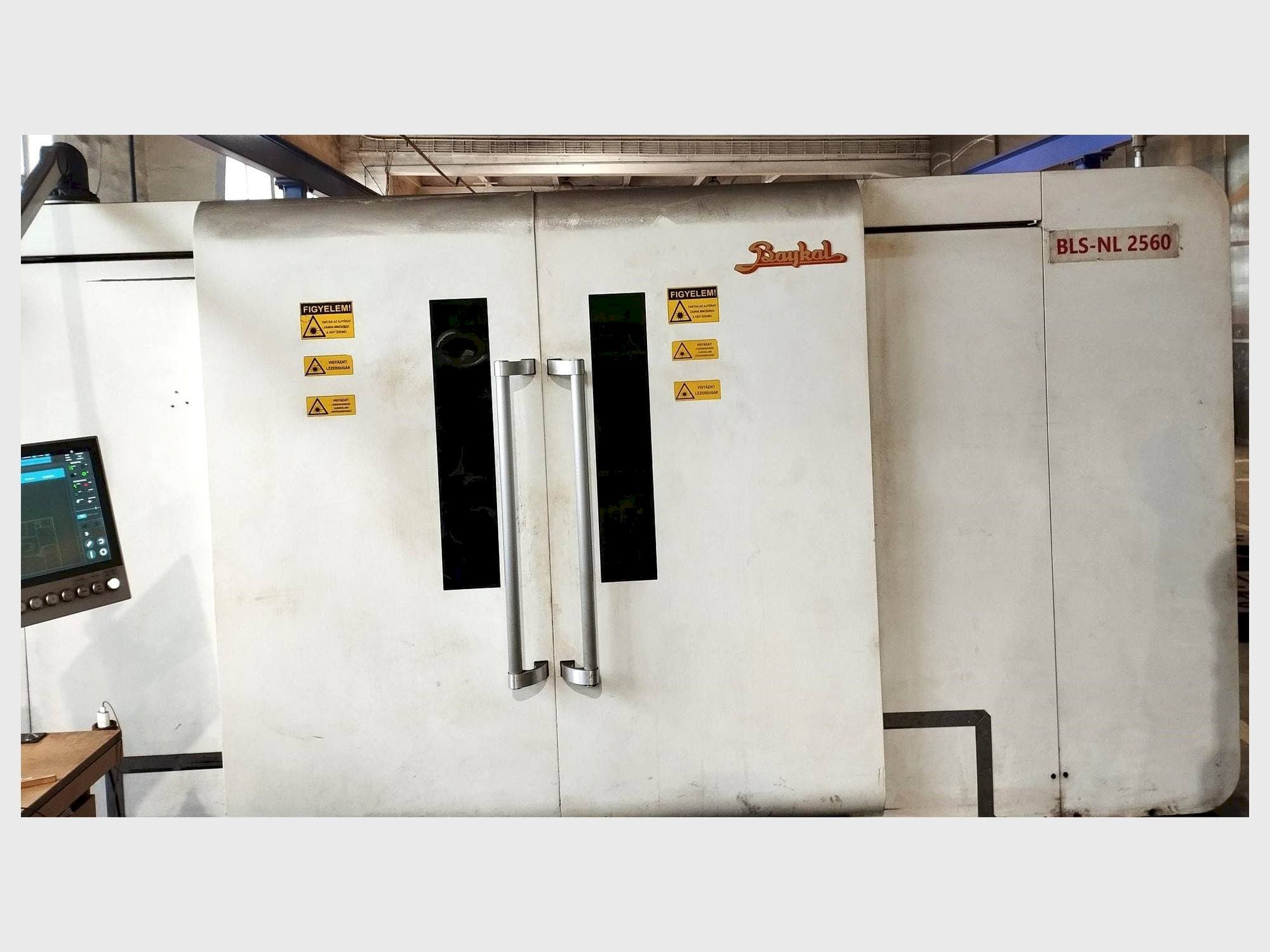

Baykal - BLS-NL 2060 4kW FiberHU-LAS-BAY-2014-00001

Additional Equipment

• - Nesting Software LANTEK Expert Cut II / Metalix AutoNest PRO
• - Nozzle Cleaning and Calibration Automatic
• - Fume extractor include 1000 m 3 /h
• - High performance and precision linear system Beckhoff CNC controller
• - Double circulation water cooling
• - Fiber optic beam yield/delivery/dosing system Windows-based operating system
• - 360-degree freely rotatable, positionable CNC control panel
• - Automatic pallet changer (double loading tray) with hydraulic lift, integrated motorized drive system
• - Programmable auxiliary gas (air / oxygen / nitrogen) selection 1-25 bar Advanced Precitec cutting head (air with cross blowing)
• - Automatic nozzle cleaning and calibration system Standard smoke extraction system, Lantek CAD/CAM system - Built-in safety systems

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Cutting head precitec procutter 2. 0
  • - Focusing lenses 150 mm
  • - Linear rails (bosch rexroth)
  • - Rapid traverse 115 m/min. 150 m/min
  • - Vector speed 165 m /min 215 m/min
  • - Acceleration 2. 2g (22m/s2) 3. 0 g (30m/s2)
  • - Absolute positioning accuracy ± 0. 02 mm ± 0. 01 mm
  • - Repeatability ± 0. 02 mm ± 0. 01 mm
  • - Programmable feed rate up to 100 m/min up to 125 m/min
  • - Transfer table motorized motorized - automatic exchange
• Qualitative Machine Benefits:
  • - Baykal uses a precitec laser head, which allows for the best results and constant peak performance on the material surface of the final product.
  • - Thanks to the capacitive sensor, the distance between the laser head and the workpiece is constant.
  • - The laser head is equipped with a cassette system.
  • - The cutting head also includes a lens protection mirror. The mirror protects the cutting lens, thus ensuring its long life. The easy-to-replace and inexpensive protective mirror allows trouble-free operation without any problems with the lenses.
  • - The cutting head is equipped with a collision protection system. In the event of a collision with the workpiece, the head easily detaches to avoid further damage.
  • - Automatic nozzle cleaning - and adjustment // gas control and delivery system
  • - The machine is equipped with an automatic gas selection system. Depending on the cutting process, the machine automatically selects and adjusts the cutting and auxiliary gases. The low- and high-pressure nitrogen, oxygen and air cutting, and auxiliary gas lines are all connected
  • - Twincat cnc control software for beckhoff controls pc-based control software with full cnc functionality covers the entire range of classic cnc functions
  • - Ipg photonics fiber laser
  • - The laser beam is created inside the fiber and reaches the cutting head without interruption, except for the beam coupler or switch

Extra information

• - Touch screen monitor - 320 GB program data storage // Light barrier protection, full cover as standard equipment // Lens protection window
