AXA - DBZCZ-MIL-AXA-2008-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools

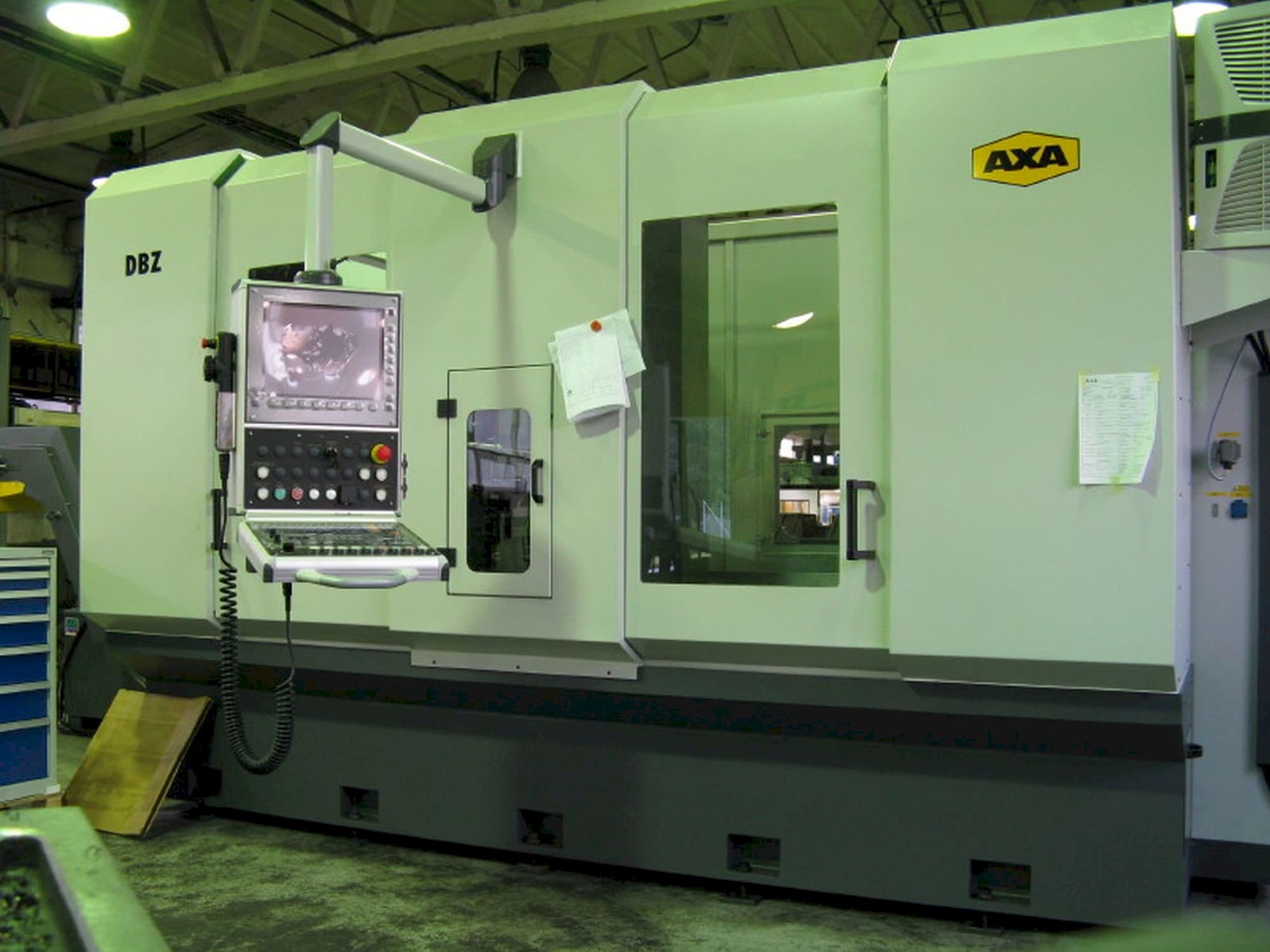

- AXA DBZ Vertical Machining center
This AXA DBZ Vertical Machining center was manufactured in the year 2008 in Germany and has 58513 production hours, of which 23672 are spindle hours. It is equipped with a HEIDENHAIN ITNC530 control unit and has 4 axis. The machine has a spindle speed of 6000 rpm, is in good condition and well maintained.
Overview
- brand: AXA
- year: 2008
- MODEL: DBZ
- production hours: 58513
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - AXA DBZ
General Data
- Measurements width: 2250 mm
- Measurements depth: 4460 mm
- Measurements height: 3550 mm
- Machine weight: 12000 kg
Control Unit
- Model: iTNC530
- Brand: HEIDENHAIN
Main drive
- Number of spindles: 1
- Spindle speed range: 6000 1/MIN
- Number of axis: 4
Movement
- X-AXIS Movement: 2 x 750 mm
- Y-AXIS Movement: 500 mm
- Z-AXIS Movement: 600 mm
Table
- Outer length: 1000 mm
- Outer width: 500 mm
Tools
- Slots in storage: 22
- Max weight: 8 kg
- Max tool diameter: 85/180 mm
- Max tool length: 400 mm
Media
- Power consumption: 69 kVa
Additional Information
- Technical Machine Benefits:
- - Distance table - spindle nose 180 - 780 mm
- - Rapid feedrate x/y/z: 25/25/20 m/min
- - Spindle motor power 40% ed: 40 kw, torque 40% bd: 191 nm
- - Through spindle coolant, high pressure 20 bar
- - External additional 400l tank with paper belt filter device
- - 4th axis preparation
- - 2pcs wash guns, electronic handwheel control, exhaust collector, air conditioning of the switchboard and spindle
- Qualitative Machine Benefits:
- - Good condition, regularly maintained.
- - 2015 - spindle retrofitted
- - 2023 - new tool changer motor
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
