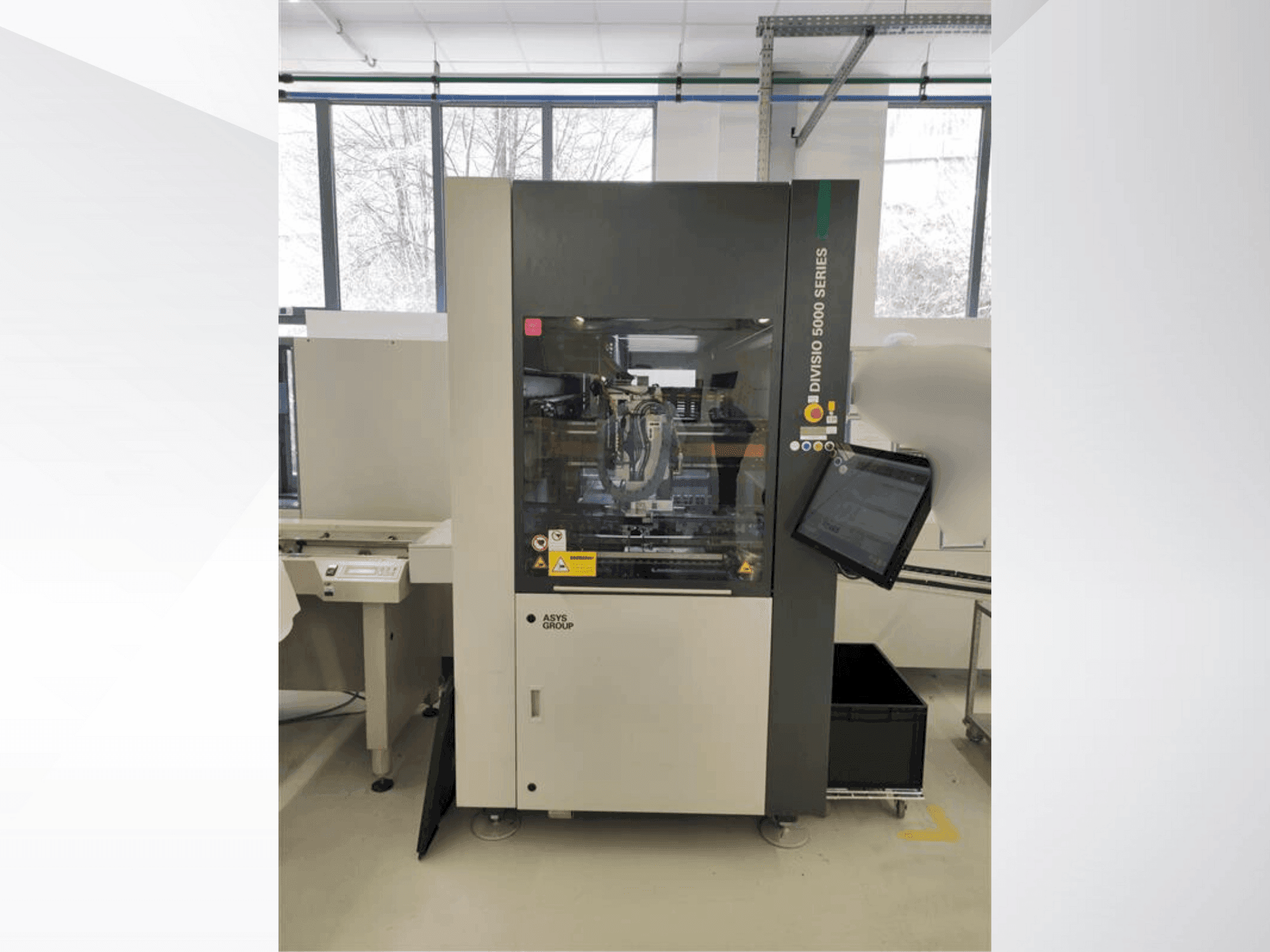

ASYS - Divisio 5100CZ-OTH-ASY-2023-00001

Additional Equipment

• - Automatic Router-Bit Change with Ejection Function
• - Vacuum Monitoring of the Suction Flow
• - Automatic Grab Finger Changer
• - Dust Cleaner Router, 3x400V; 4.0 kW
• - Camera and Software Modules: Teach Function, Bad Mark Recognition, Interface Good / Bad Sorting
• - ASYCAM CAD Data Converter
• - Conveyor System for Carrier Transport
• - Outlet Conveyor, Flatbelt, 1000 mm
• - PARIO 500 Basis Left, Straight: PARIO 500 Basis Right, Straight: Pario 500 Tray Adaption
• - PARIO 500 Basis Left, Straight PARIO 500 Basis Right, Straight Pario 500 Tray Adaption

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Noise level: < 75 db(a)
  • - Interface: smema, hermes, siemens
  • - Transfer direction: left to right or right to left
  • - Speed: x,y = 2000 mm/s, z = 1500 mm/s
  • - Acceleration: x,y = 20 m/s², z = 15 m/s²
  • - Positioning: ±0. 02 mm (20°c ±1°c)
  • - Repeatability: ±0. 005 mm (20°c ±1°c)
  • - Cut-accuracy: ±0. 08 mm (20°c ±1°c)
  • - Panel length: 70 to 460 mm
  • - Panel width: 50 to 460 mm
• Qualitative Machine Benefits:
  • - Panel thickness: 0. 5 to 5. 0 mm
  • - Max. Panel weight: 1. 5 kg
  • - Max. Pcb weight: 1. 5 kg
  • - Component height, spindle-side: 8 mm; partial 18 mm (other height on request)
  • - Component height, gripper-side: 40 mm
  • - Trays on lane 2: 600 x 400 mm
  • - Trays on lane 2: 600 x 400 mm
  • - Linear motors for highest dynamics and accuracy
  • - Electric width adjustment of the 3 segments conveyor belt
  • - Camera system including fiducial recognition

Extra information

• - Machine still under power. Operating Resources Management Consumables Management Autonomous Time Calculator ADF Universal Grab Tool for Servo Grip

Payment Terms

• Payment in advance

• Asset Financing
