ARBURG ALLROUNDER CENTEX 470 C 1500-800 (2007) Injection moulding machine

Show in original language

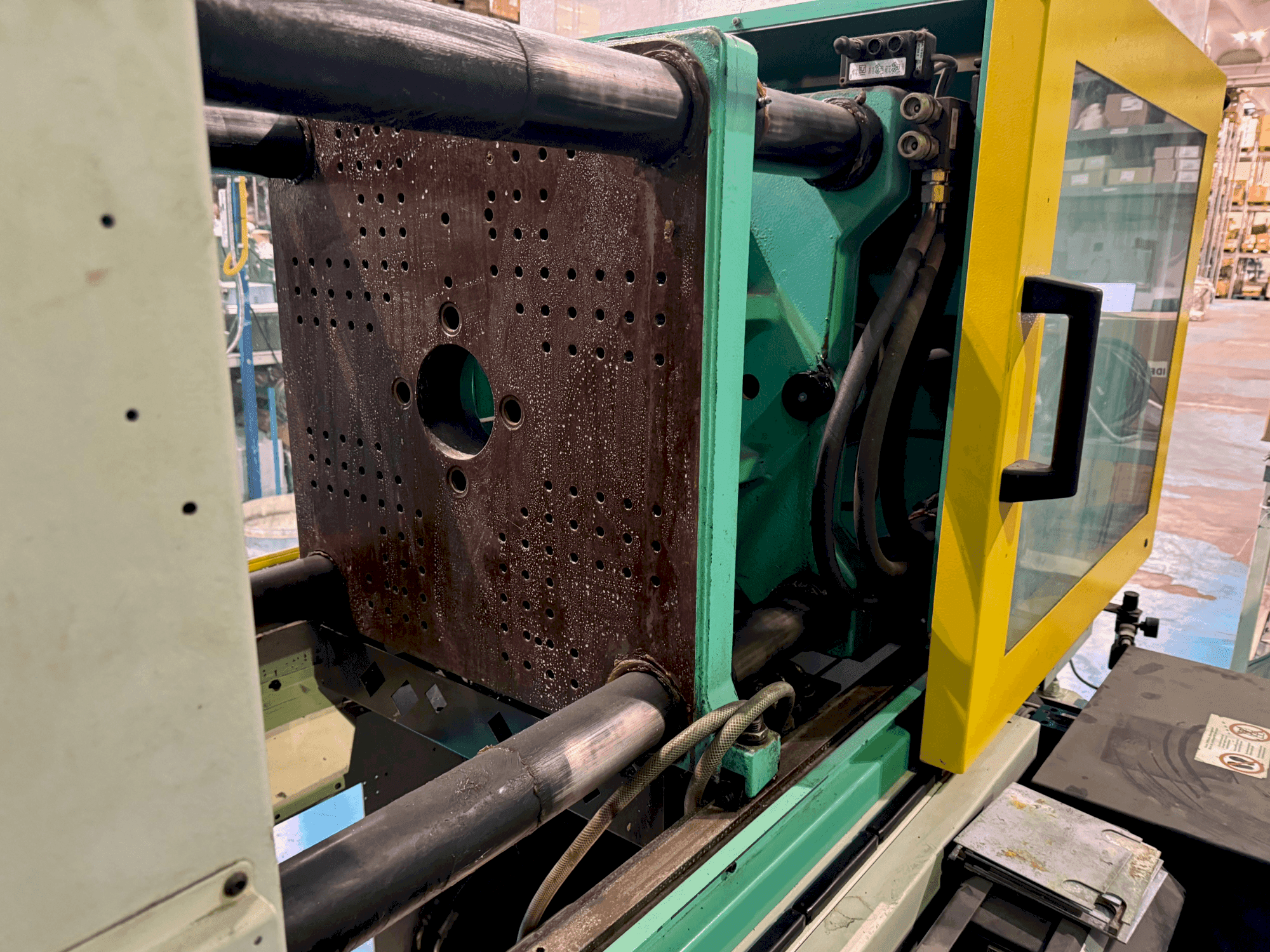

This ARBURG ALLROUNDER CENTEX 470 C 1500-800 Injection moulding machine was manufactured in 2007 in Germany. It has a clamping force of 1500 kN, an opening stroke of 650mm and is equipped with an injection unit with 50mm screw diameter. The plate dimensions are 715x715 mm and light between columns is 470 mm. It is still under power and can be inspected on-site anytime.

Overview

brand: Arburg
year: 2007
MODEL: ALLROUNDER CENTEX 470 C 1500-800
application type: Injection Moulding
Location: Italy
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg ALLROUNDER CENTEX 470 C 1500-800

General Data

Machine weight: 5400 kg

Injection Unit

Screw diameter: 50 mm
Heating capacity: 14.9 kW

Clamping unit

Clamping force: 1500 kN
Opening stroke: 650 mm
Max open daylight: 470 mm
Size of mold platens: 715 x 715 mm

Media

Main electronic connection: 400 V 3 ~ 50 Hz
Pump drive power: 22 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
