Arburg - 320 C 500-100 + Multilift H with B-AxisDE-INJ-ARB-2003-00004

Name: Arburg 320 C 500-100 + Multilift H with B-Axis
Brand: Arburg
SKU: DE-INJ-ARB-2003-00004
Price: 10500 EUR
Availability: InStock

10,500 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
ARBURG 320 C 500-100 + Multilift H with B-Axis Injection moulding machine

Show in original language

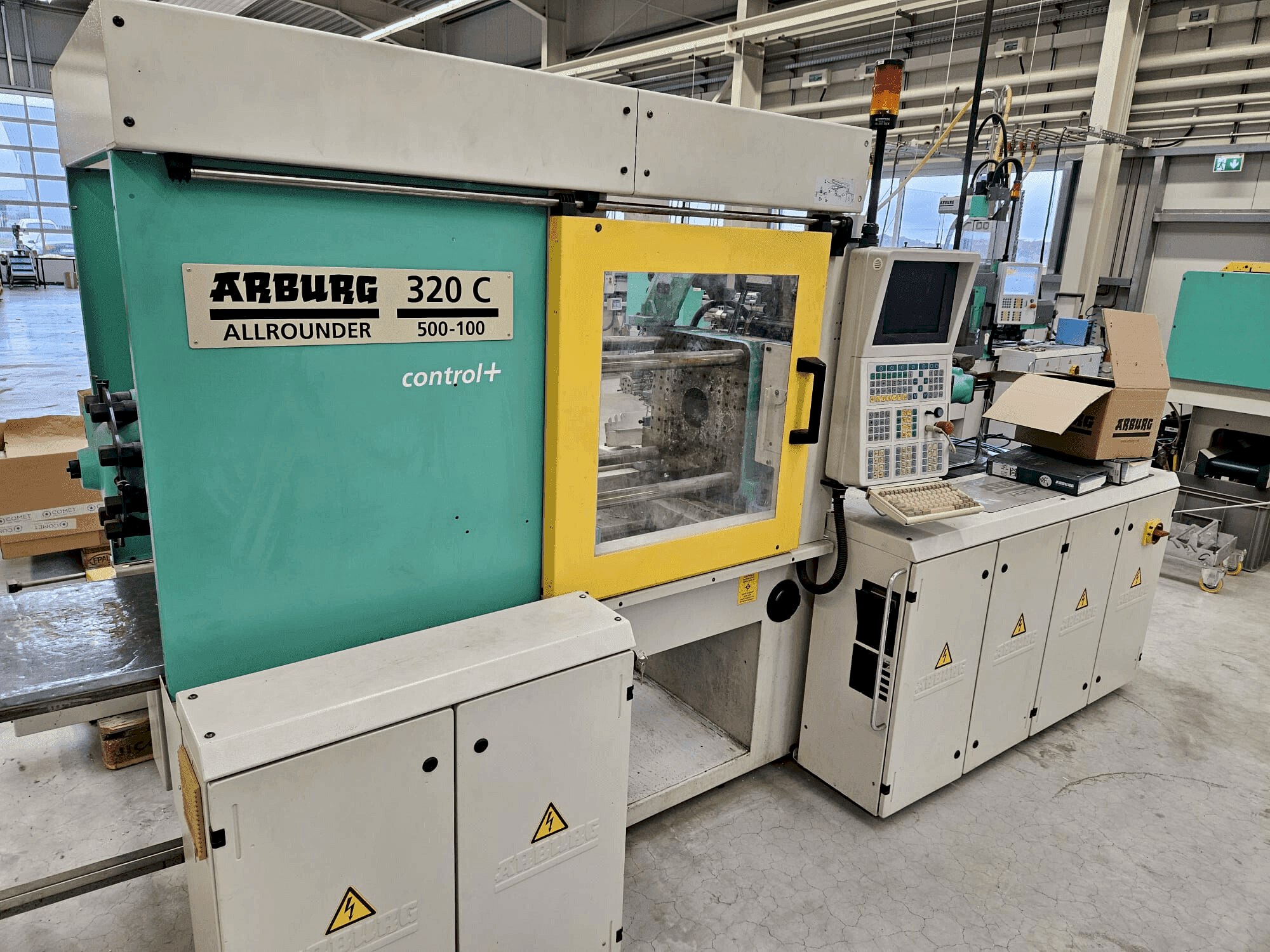

This ARBURG 320 C 500-100 + Multilift H with B-Axis Injection moulding machine was manufactured in 2003 in Germany. It has a clamping force of 500 kN and a screw diameter of 30 mm. The distance between platens is 550 mm and the opening stroke is 350 mm. In total it operated 64000 pump hours. The injection moulding machine comes with a Multilift H with B-Axis, featuring a handling weight gripper plus part weight of max. 5 kg and a swivel range B-axis of 90 degrees. See original tech specs (DE) attached as PDF below.

Overview

brand: Arburg
year: 2003
MODEL: 320 C 500-100 + Multilift H with B-Axis
production hours: 64000
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Immediately
control unit brand: ARBURG

Technical Information - Arburg 320 C 500-100 + Multilift H with B-Axis

General Data

Machine weight: 2080 kg

Control Unit

Model: SELOGICA 3.090
Brand: ARBURG

Injection Unit

Screw diameter: 30 mm
Injection pressure: 1550 bar

Clamping unit

Clamping force: 500 kN
Opening stroke: 350 mm
Distance between bars: 550 mm

Additional Equipment

- Multilift H with B-Axis: Handling weight gripper plus part weight max. 5 kg, Swivel range B-axis 90 degrees

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Mold installation height min. 200 mm
- - Clear column spacing 320 x 320 mm
- - Mold mounting platens (w x h) 446 x 446
- - Drive power of the hydraulic pump 15 kw
- - Effective screw length l/d 16. 7
- - Screw stroke max. 100 mm
- - Calculated stroke volume max. 70 cm3
- - Injection part weight max. 64 g/ps
- - Injection pressure max. 1550 bar
- - Injection flow max. 180 cm3/s

Extra information

- Oil filling 160 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

ARBURG 320 C 500-100 %2B Multilift H with B-Axis (2003) - Tech Specs (DE).pdf
