- Arburg 270C 500-100 Injection Moulding Machine

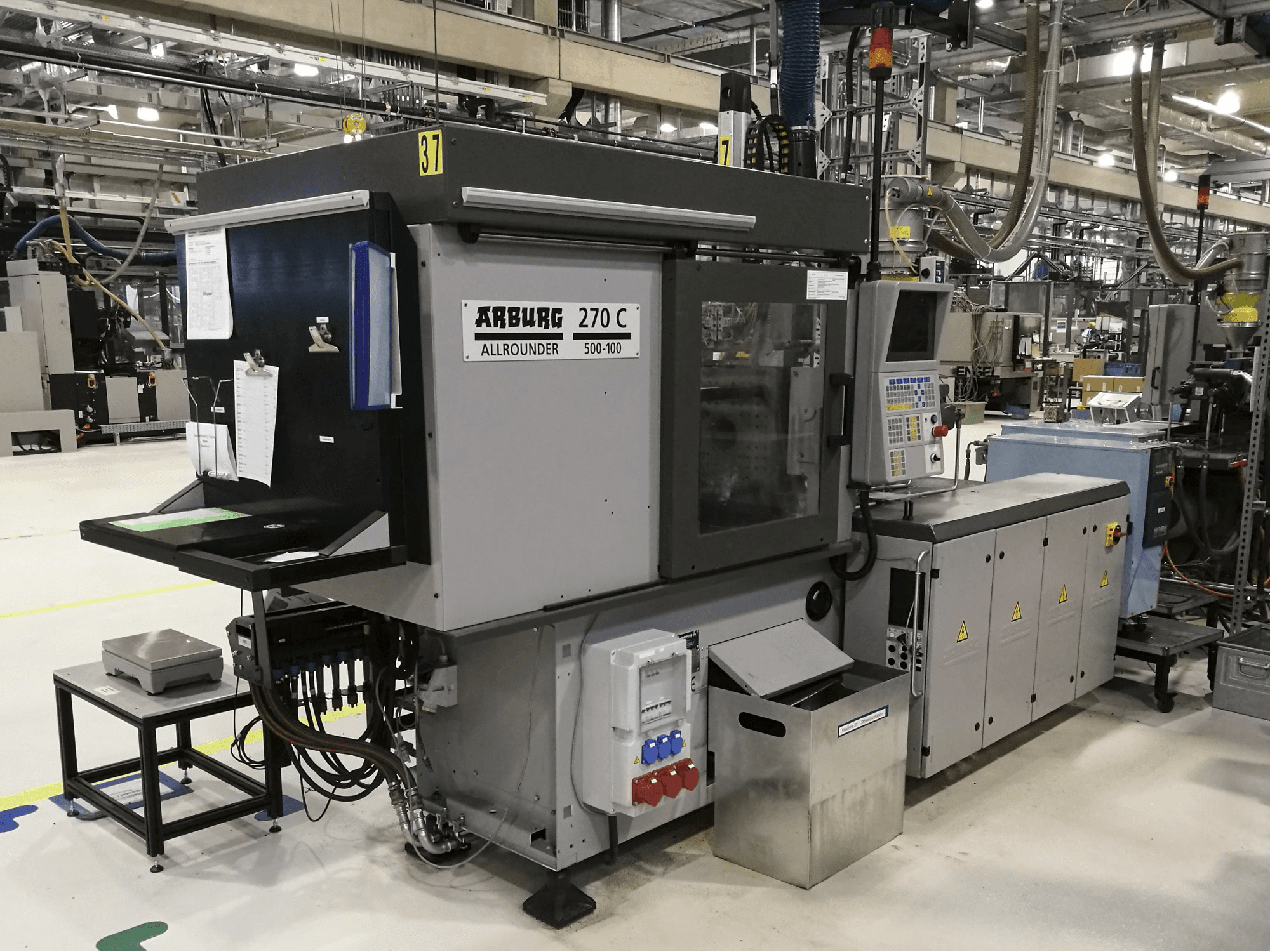

This Arburg 270C 500-100 Injection Moulding Machine was built in Germany in 2006 and has a working record of 54232 production hours ever since. Operated through an Arburg control unit, this solid machine stands out for its hydraulic drive and stands in outstanding conditions thanks to frequent inspections. In the past, this equipment has handled plastic as main material.
Overview
- brand: Arburg
- year: 2006
- MODEL: 270C 500-100
- production hours: 54232
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
- control unit brand: Arburg
Technical Information - Arburg 270C 500-100
General Data
- Measurements width: 3500 mm
- Measurements depth: 1500 mm
- Measurements height: 2000 mm
- Machine weight: 1900 kg
- Automatic cycles: 9400139
- Type of drive: Hydraulic
- Closure: Hydraulic
Control Unit
- Brand: Arburg
Injection Unit
- Heating capacity: 10.6 kW
- Nozzle pressure: 30 kN
Clamping unit
- Clamping force: 500 kN
- Opening stroke: 350 mm
- Max open daylight: 550 mm
- Distance between bars: 320 mm
- Size of mold platens: 446 mm
- Ejector stroke: 125 mm
- Ejector force for / back: 30 kN
Media
- Main electronic connection: 400 V / 50 Hz / 3 P
- Power consumption: 22 kVA
- Oil tank: 160 L
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
