AMADA - GPX 630TR-SHE-AMA-1997-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- AMADA GPX 630 Shearing Machine

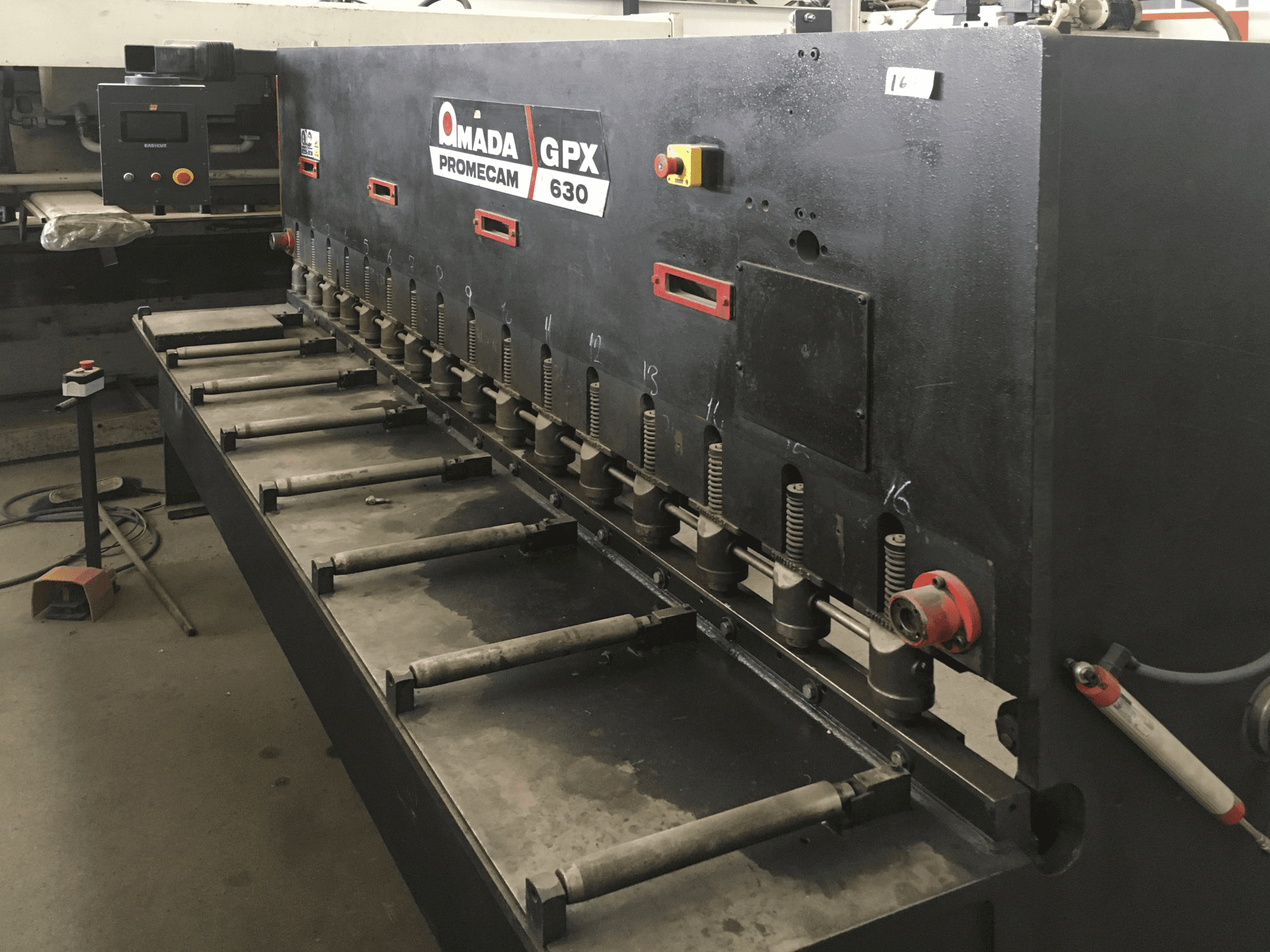

This AMADA GPX 630 Shearing Machine was made in 1997 in France and is operated through a brand new and modern STEP AUTOMATION EASYCUT Control unit. With a shearing force of 197 kN, this machine has mainly worked with steel sheets between 2-6 mm of thickness during the past. This model stands out due to its automatic cutting angle adjustment and blade cleaning, guaranteing a high cutting quality. Beside the control unit, a new back support servo, a new encoder and a electric panel were installed to the machine.
Overview
- brand: AMADA
- year: 1997
- MODEL: GPX 630
- application type: Shearing
- Location: Turkey
- machine type: Hydraulic Shearing Machine
- availability: Sold
- control unit brand: STEP AUTOMATION
Technical Information - AMADA GPX 630
General Data
- Measurements width: 3750 mm
- Measurements depth: 2000 mm
- Measurements height: 1850 mm
- Machine weight: 6500 kg
Control Unit
- Brand: STEP AUTOMATION
- Model: EASYCUT
Main drive
- Shearing force: 197 kN
- Stroke: 160 mm
Max Material thickness
- Steel: 6 mm
- Stainless steel: 6 mm
Media
- Main electronic connection: 380 V / 50 Hz
- Power consumption: 5.5 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
Products related to AMADA GPX 630
VIPROS 2510 KING
AMADA - CNC Punch Press
LC 2415 A3
AMADA - CO2 Laser Cutting Machine
EUROPE 255 CNC
AMADA - Turret Punch Press
LC3015X1NT 4kW Co2
AMADA - CO2 Laser Cutting Machine
HFT50-20
AMADA - Press Brake
LC-2415 alpha III
AMADA - CO2 Laser Cutting Machine

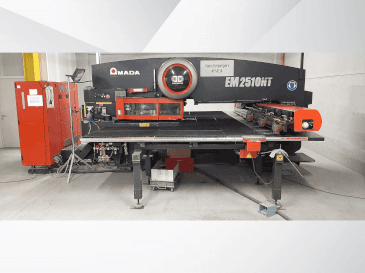

EM2510NT
