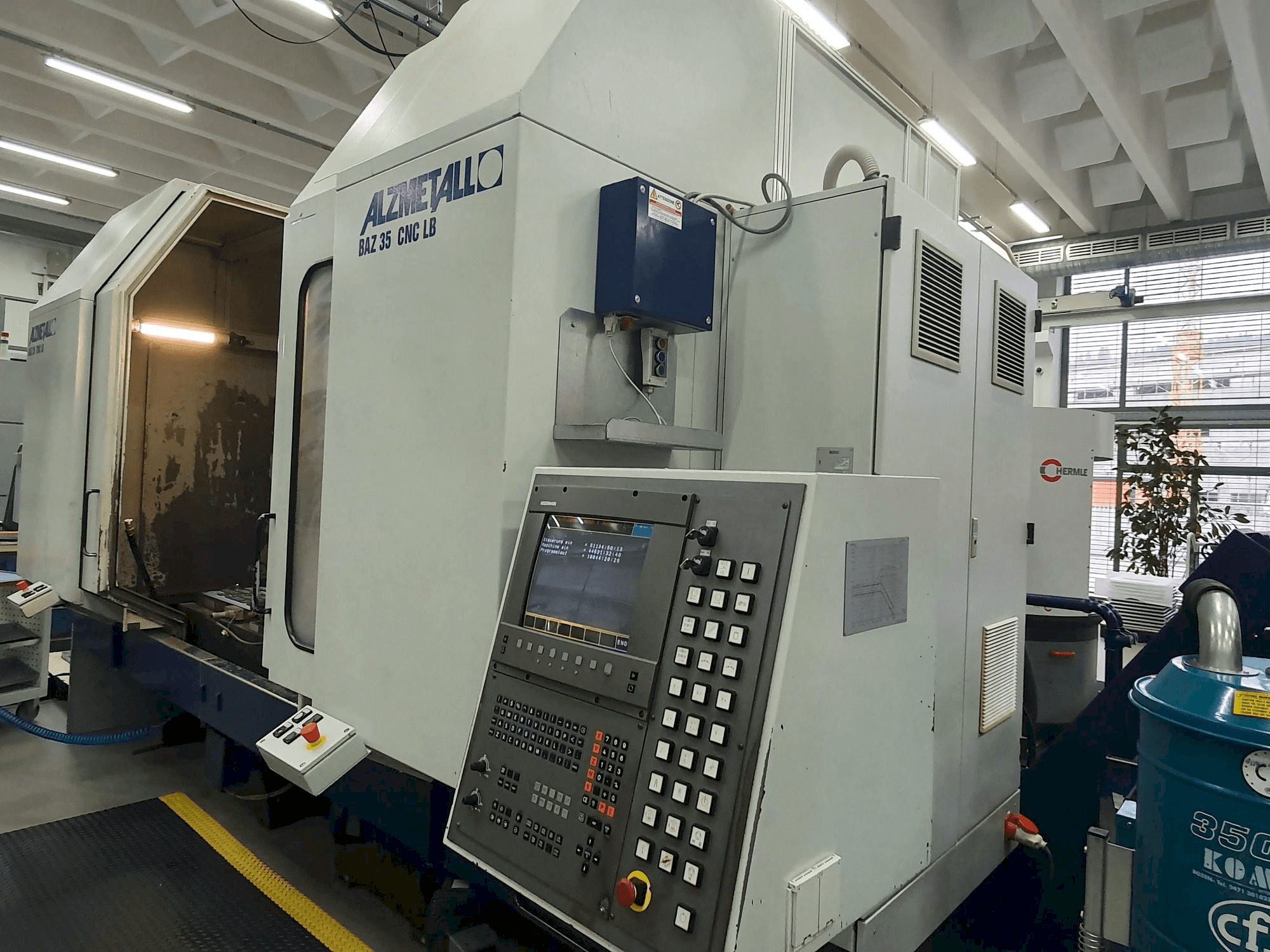

Alzmetall BAZ35LB Vertical Machining Center

Show in original language

This Alzmetall BAZ35LB Vertical Machining Center was produced in the year 1999. It has been working for 44531 hours (spindle 18044). It is equipped with a Heidenhain control unit. It can work with a spindle speed up to 12000 rpm. This machine includes an internal cooling, and a chip conveyor.

Overview

brand: Alzmetall
year: 1999
MODEL: BAZ35LB
production hours: 51134
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Alzmetall BAZ35LB

General Data

Measurements width: 5800 mm
Measurements depth: 3500 mm
Measurements height: 3000 mm
Machine weight: 10000 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 1x2500 or 2x800 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 650 mm

Table

TSlots size: 5 x 14 x 100 mm
Table load: 2000 kg

Additional Equipment

- Hydraulic vices Allmatic 125 with aggregate
- Exhaust system

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Internal cooling
- - Chip conveyor
- - Measuring probe m+h
- - Glass scales

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
